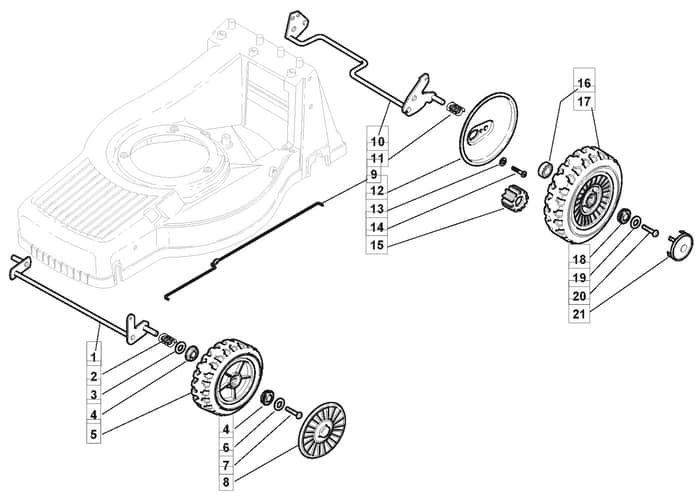

M60 PD - 2008 - 292552023/UM8 - Mountfield Rotary Mower Wheels Diagram

Name: M60 PD - 2008 - 292552023/UM8 - Mountfield Rotary Mower Wheels Diagram
SKU: m60_pd_292552023_um8_wheels-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M60 PD - 2008 - 292552023/UM8 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield M60 PD Parts Diagram

Product Name - M60 PD

Model Year - 2008

Model Type - TU 554 TR

Art.N - 292552023/UM8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381002847/0 Out of stock	Front Wheel Axle From 01-9-2006	£33.10 £27.58
1	MO381002825/0 Out of stock	Front Wheel Axle To 31-August-2006	£44.56 £37.13
2	MO122430210/0 Out of stock	Bearing	£1.54 £1.28
3	MO112521370/0 Out of stock	Washer	£1.39 £1.16
4	MO122122206/0 In stock	Bearing	£1.66 £1.38
5	MO381007344/0 Out of stock	Wheel To 31-8-2006	£16.76 £13.97
5	MO381007351/0 In stock	Wheel Ø 170 From 01-9-2006	£12.31 £10.26
8	MO322110729/0 In stock	Hub Cap Grey Grey	£2.42 £2.02
10	MO381002823/0 Out of stock	Rear Wheel Axle	£48.37 £40.31
11	MO122430215/0 Out of stock	Spring	£2.92 £2.43
15	MO122570125/0 Out of stock	Pinion	£13.22 £11.02
16	MO119216038/0 Out of stock	Bearing	£5.34 £4.45
17	MO381007362/0 Out of stock	Wheel	£41.89 £34.91
18	MO122122201/0 In stock	Bearing	£2.03 £1.69
19	MO112521460/0 Out of stock	Washer To 31-8-2009	£1.28 £1.07
20	MO112735662/1 Out of stock	Screw	£2.17 £1.81
21	MO322110384/0 In stock	Hub Cap 190.215 [Grey]	£6.48 £5.40
