M60 PD - 2006 - 292552023/MOE - Mountfield Rotary Mower Transmission Diagram

Description

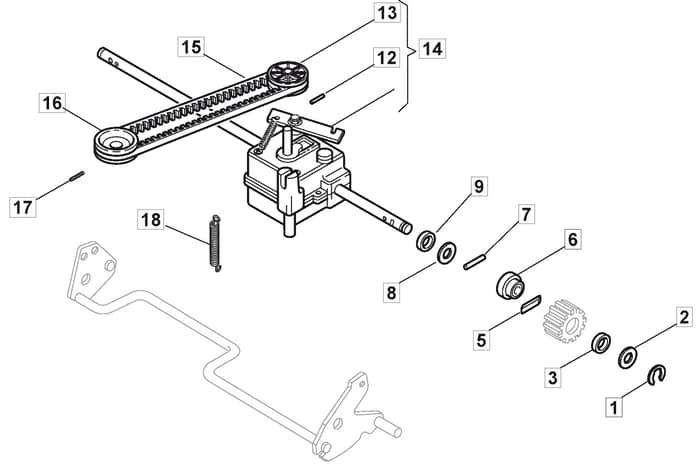

Mountfield M60 PD Parts Diagram

Product Name - M60 PD

Model Year - 2006

Model Type - TU 554 TR

Art.N - 292552023/MOE

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112000957/0 Out of stock	Benzing Ring	£1.48 £1.23
1	MO122450063/0 Out of stock	Spring To 31-8-2006	£1.48 £1.23
3	MO322160520/0 Out of stock	Dust Cover Disc	£1.66 £1.38
5	MO122076645/0 In stock	Key	£1.61 £1.34
6	MO322170630/1 Out of stock	Spacer	£4.72 £3.93
7	MO122753002/0 Out of stock	Pin	£1.87 £1.56
8	MO112520032/0 Out of stock	Washer	£1.48 £1.23
9	MO119035152/0 Out of stock	Grommet	£4.55 £3.79
12	MO112620310/0 Out of stock	Pin	£1.87 £1.56
13	MO122601913/0 Out of stock	Pulley	£16.07 £13.39
14	MO181003085/0 Out of stock	Gear Box F.R.	£154.00 £128.33
15	MO135064383/0 In stock	Belt	£14.33 £11.94
16	MO122601918/0 Out of stock	Pulley. Crankshaft Ø 22.2	£23.77 £19.81
17	MO112714312/0 Out of stock	Grub Screw	£1.48 £1.23
18	MO122450434/0 In stock	Tension Spring	£6.29 £5.24
