Description

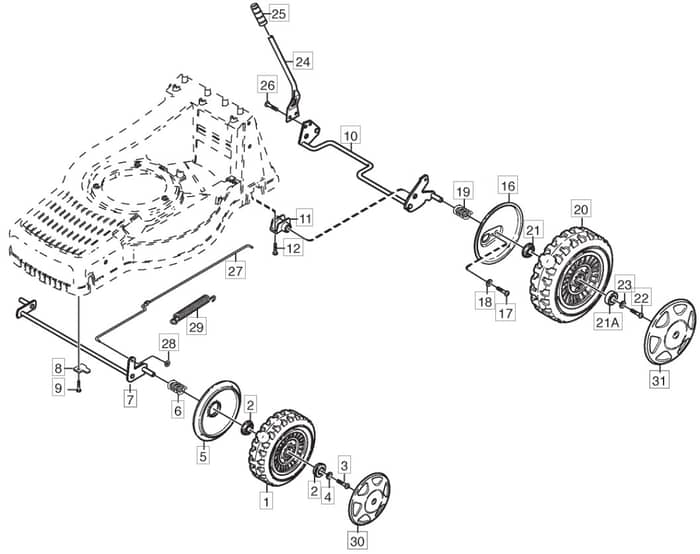

Mountfield M6 SP TRI-CUT Parts Diagram

Product Name - M6 SP TRI-CUT

Model Year - 2003

Model Type -

Art.N - 12-9686-78

Ref. Img. Part No. Details
  1 Wheel MO1111-2784-01
Wheel
Out of stock
£17.88 £14.90

  6 Spring-Wheel Axle MO122430210/0
Spring-Wheel Axle
Out of stock
£1.63 £1.36

  10 Rear Axle MO381002823/0
Rear Axle
Out of stock
£48.37 £40.31

  11 Bushing MO322785153/0
Bushing
In stock
£15.04 £12.53

  12 Screw MO112735664/0
Screw
In stock
£1.36 £1.13

  17 Screw MO112735661/0
Screw
Out of stock
£1.49 £1.24

  18 Washer MO112523040/0
Washer
In stock
£1.49 £1.24

  19 Spring MO122430215/0
Spring
Out of stock
£3.12 £2.60

  20 Wheel Pos 21 - 21A incl. MO1111-3026-01
Wheel Pos 21 - 21A incl.
Out of stock
£47.40 £39.50

  21 Ball Bearing MO122122201/0
Ball Bearing
Out of stock
£2.17 £1.81

  21 Ball Bearing MO119216038/0
Ball Bearing
Out of stock
£5.69 £4.74

  23 Flat Washer MO9699-0100-02
Flat Washer
Out of stock
£1.90 £1.58

  25 Lever Knob MO322399808/0
Lever Knob
Out of stock
£2.30 £1.92

  26 Screw MO112735662/1
Screw
Out of stock
£2.30 £1.92

  28 Starlock MO112604898/0
Starlock
Out of stock
£1.49 £1.24

  29 Spring MO122446181/0
Spring
Out of stock
£7.72 £6.43

  30 Hub Cap 175 (Grey) 7-11 2 MO322110312/0
Hub Cap 175 (Grey) 7-11 2
Out of stock
£9.35 £7.79

  30 Hub Cap (Silver) MO322110383/0
Hub Cap (Silver)
Out of stock
£6.50 £5.42

  31 Coperchio Mozzo MO322110384/0
Coperchio Mozzo
Out of stock
£6.91 £5.76


Description

Mountfield M6 SP TRI-CUT Parts Diagram

Product Name - M6 SP TRI-CUT

Model Year - 2003

Model Type -

Art.N - 12-9686-78
