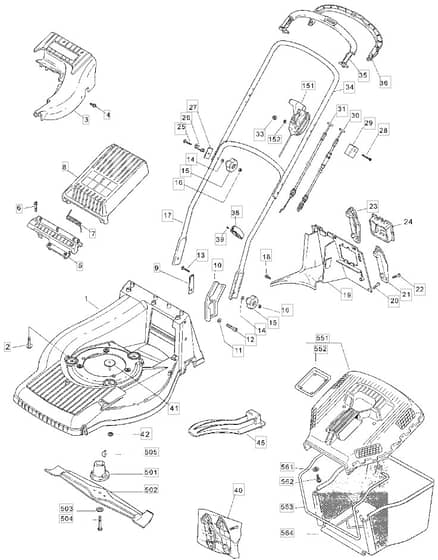

M6 PD/H - 2006 - 12-9604-81 - Mountfield Rotary Mower Main Assembly Diagram

M6 PD/H - 2006 - 12-9604-81 - Mountfield Rotary Mower Main Assembly Diagram
M6 PD/H - 2006 - 12-9604-81 - Mountfield Rotary Mower Main Assembly Diagram

Description

Mountfield M6 PD/H Parts Diagram

Product Name - MOUNTFIELD M6 PD/H

Model Year - 2006

Model Type -

Art.N - 12-9604-81

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Screw MO120001064/0
Screw
 Out of stock
£9.76 £8.13

  3 Cover (Red) Ral3003 MO322060155/1
Cover (Red) Ral3003
 Out of stock
£18.84 £15.70

  5 Flap Attachment-Black MO322785179/0
Flap Attachment-Black
 Out of stock
£40.07 £33.39

  7 Spring MO122450430/0
Spring
 Out of stock
£4.60 £3.83

  8 Stone Guard. Black MO322600068/2
Stone Guard. Black
 Out of stock
£11.89 £9.91

  9 Attachment Plate MO322551635/0
Attachment Plate
 Out of stock
£3.97 £3.31

  10 Handlebar Attachment MO322778405/0
Handlebar Attachment
 Out of stock
£22.99 £19.16

  12 Screw MO112760515/0
Screw
 Out of stock
£1.49 £1.24

  14 Washer MO9699-0028-02
Washer
 Out of stock
£1.49 £1.24

  15 Locking Knob MO322399810/0
Locking Knob
 In stock
£7.98 £6.65

  16 Nut MO112361005/0
Nut
 Out of stock
£4.07 £3.39

  17 Handle-Lower (Black) MO381006613/0
Handle-Lower (Black)
 Out of stock
£36.56 £30.47

  19 Rear Attachment (Combi 48-55) MO322108277/0
Rear Attachment (Combi 48-55)
 Out of stock
£47.40 £39.50

  20 Screw MO112735664/0
Screw
 In stock
£1.36 £1.13

  22 Screw MO112728692/0
Screw
 Out of stock
£1.48 £1.23

  25 Screw MO9899-3557-12
Screw
 Out of stock
£1.90 £1.58

  26 Eyelink MO122430311/0
Eyelink
 Out of stock
£6.64 £5.53

  27 Reinforcement MO322545137/0
Reinforcement
 Out of stock
£1.49 £1.24

  28 Screw MO112727787/0
Screw
 Out of stock
£1.75 £1.46

  29 Cable Holder MO322551685/0
Cable Holder
 In stock
£7.24 £6.03

  30 Clutch Cable MO381000697/0
Clutch Cable
 In stock
£19.51 £16.26

  31 Cable. Thread Engine Brake MO181000687/0
Cable. Thread Engine Brake
 In stock
£12.86 £10.72

  33 Lock Nut MO112154510/0
Lock Nut
 In stock
£1.49 £1.24

  34 Handle-Upper (Black) MO381006618/1
Handle-Upper (Black)
 Out of stock
£48.76 £40.63

  35 Control Handle (Eng.Brake MO381003298/1
Control Handle (Eng.Brake
 In stock
£31.15 £25.96

  36 Clutch Lever MO381003297/1
Clutch Lever
 In stock
£21.26 £17.72

  38 Cable Holder MO322192001/0
Cable Holder
 Out of stock
£1.49 £1.24

  39 Screw MO112728706/0
Screw
 Out of stock
£1.49 £1.24

  40 Accessory Bag MO381008658/1
Accessory Bag
 Out of stock
£16.79 £13.99

  41 Cap MO322820057/0
Cap
 Out of stock
£13.30 £11.08

  42 Locking Washer MO112604899/0
Locking Washer
 Out of stock
£1.49 £1.24

  151 Throttle Cable MO181007128/0
Throttle Cable
 In stock
£22.96 £19.13

  152 Washer MO112523040/0
Washer
 In stock
£1.49 £1.24

  501 Blade Holder MO122465618/0
Blade Holder
 In stock
£8.77 £7.31

  502 Blade MO181004144/0
Blade
 In stock
£27.22 £22.68

  503 Washer MO9696-0011-01
Washer
 Out of stock
£9.48 £7.90

  504 Screw MO112735698/0
Screw
 In stock
£1.75 £1.46

  505 Key MO112139100/0
Key
 In stock
£1.49 £1.24

  551 Collector-Upper Part Black MO322486095/0
Collector-Upper Part Black
 Out of stock
£54.18 £45.15

  552 Cover MO322486098/0
Cover
 Out of stock
£5.42 £4.52

  561 Flat Washer MO9699-0100-02
Flat Washer
 Out of stock
£1.90 £1.58

  562 Screw MO112728300/0
Screw
 Out of stock
£1.49 £1.24

  563 Wire Clamp MO1111-2843-01
Wire Clamp
 Out of stock
£41.99 £34.99

  564 Collecting Bag MO181002235/0
Collecting Bag
 Out of stock
£58.25 £48.54


Description

Mountfield M6 PD/H Parts Diagram

Product Name - MOUNTFIELD M6 PD/H

Model Year - 2006

Model Type -

Art.N - 12-9604-81
