Description

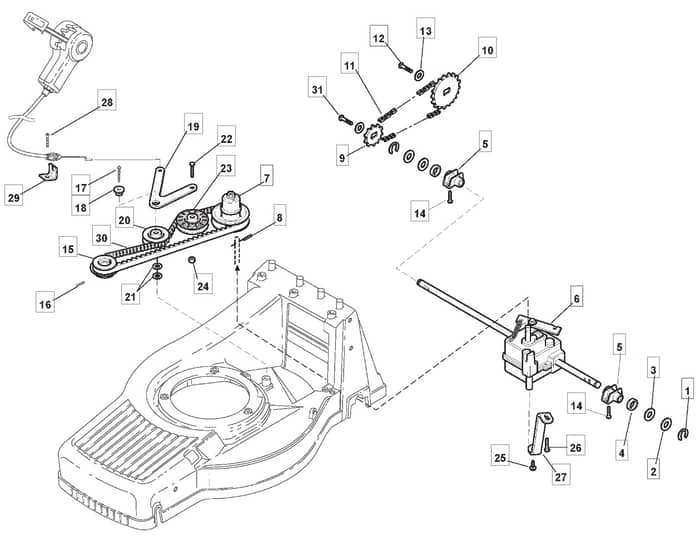

Mountfield M554 R ES Parts Diagram

Product Name - M554 R ES

Model Year - 2010

Model Type - TU 554 TR/E-R 4S

Art.N - 292555543/UM9

Ref. Img. Part No. Details
  1 Spring To 31-8-2006
Spring To 31-8-2006
MO122450063/0 Out of stock
Spring To 31-8-2006
£1.48 £1.23

  1 Benzing Ring
Benzing Ring
MO112000957/0 Out of stock
Benzing Ring
£1.48 £1.23

  2 Washer From 01-9-2014
Washer From 01-9-2014
MO112521370/0 Out of stock
Washer From 01-9-2014
£1.48 £1.23

  2 Washer To 31-8-2014
Washer To 31-8-2014
MO122671659/0 Out of stock
Washer To 31-8-2014
£1.48 £1.23

  3 Washer
Washer
MO112520032/0 Out of stock
Washer
£1.48 £1.23

  4 Grommet
Grommet
MO119035152/0 Out of stock
Grommet
£4.55 £3.79

  5 Gear Box Support
Gear Box Support
MO322785153/0 In stock
Gear Box Support
£14.77 £12.31

  6 Gear Box F.R.
Gear Box F.R.
MO181003087/1 Out of stock
Gear Box F.R.
£227.64 £189.70

  7 Belt Pulley To 31-8-2013
Belt Pulley To 31-8-2013
MO122601916/0 Out of stock
Belt Pulley To 31-8-2013
£61.33 £51.11

  7 Pulley From 01-9-2013
Pulley From 01-9-2013
MO122601932/0 Out of stock
Pulley From 01-9-2013
£54.64 £45.53

  8 Elastic Pin
Elastic Pin
MO112645700/0 Out of stock
Elastic Pin
£1.48 £1.23

  9 Ring Gear
Ring Gear
MO1111-3423-01 Out of stock
Ring Gear
£14.06 £11.72

  10 Ring Gear
Ring Gear
MO1111-3424-01 Out of stock
Ring Gear
£17.41 £14.51

  11 Chain
Chain
MO1111-3562-01 In stock
Chain
£19.08 £15.90

  12 Screw
Screw
MO112735662/1 Out of stock
Screw
£2.28 £1.90

  15 Pulley. Crankshaft Ø 22.2
Pulley. Crankshaft Ø 22.2
MO122601917/0 Out of stock
Pulley. Crankshaft Ø 22.2
£23.16 £19.30

  16 Grub Screw
Grub Screw
MO112714312/0 Out of stock
Grub Screw
£1.48 £1.23

  17 Screw
Screw
MO112735669/0 Out of stock
Screw
£1.48 £1.23

  18 Washer
Washer
MO122671656/0 Out of stock
Washer
£6.96 £5.80

  19 Driving Lever
Driving Lever
MO322320003/0 Out of stock
Driving Lever
£13.24 £11.03

  20 Pulley
Pulley
MO122601915/0 In stock
Pulley
£20.35 £16.96

  21 Washer
Washer
MO112523040/0 In stock
Washer
£1.48 £1.23

  22 Screw
Screw
MO112674550/0 Out of stock
Screw
£1.48 £1.23

  23 Pulley
Pulley
MO122601914/0 In stock
Pulley
£20.48 £17.07

  24 Nut
Nut
MO112154510/0 In stock
Nut
£1.48 £1.23

  25 Screw
Screw
MO112728300/0 Out of stock
Screw
£1.48 £1.23

  27 Clamp
Clamp
MO322778407/0 Out of stock
Clamp
£10.44 £8.70

  28 Screw
Screw
MO112735664/0 In stock
Screw
£1.34 £1.12

  29 Support
Support
MO322806619/0 Out of stock
Support
£4.45 £3.71

  30 Belt
Belt
MO135064383/0 In stock
Belt
£14.33 £11.94

  31 Self-Tap Screw M6 X 20
Self-Tap Screw M6 X 20
MO112735592/0 Out of stock
Self-Tap Screw M6 X 20
£1.87 £1.56
