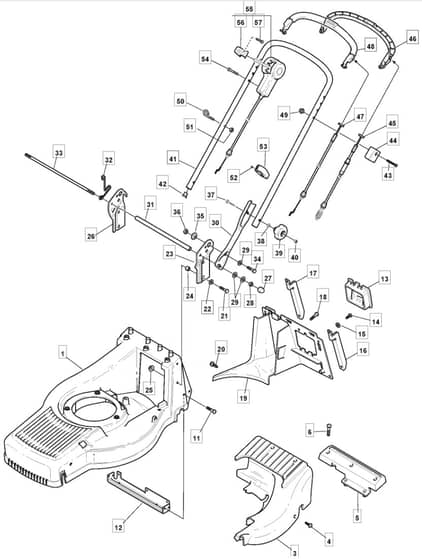

M554 R - 2008-2010 - 292555043/UM8 - Mountfield Rotary Mower Main Assembly Diagram

Name: M554 R - 2008-2010 - 292555043/UM8 - Mountfield Rotary Mower Main Assembly Diagram
SKU: m554_r_292555043_um8_main_assembly-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M554 R - 2008-2010 - 292555043/UM8 - Mountfield Rotary Mower Main Assembly Diagram

Description

Mountfield M554 R Parts Diagram

Product Name - M554 R

Model Year - 2008-2010

Model Type - TU 554 TR-R 4S

Art.N - 292555043/UM8

Be the first to review this product

0 product questions

	Part No.	Details
3	MO322060155/1 Out of stock	Wheels Rod Carter Red	£18.84 £15.70
11	MO112735592/0 Out of stock	Screw	£1.87 £1.56
13	MO322109531/0 Out of stock	Battery Cover	£14.34 £11.95
14	MO112728124/0 Out of stock	Screw	£1.48 £1.23
15	MO112523040/0 In stock	Washer	£1.48 £1.23
18	MO112735664/0 In stock	Screw	£1.34 £1.12
19	MO322108278/0 Out of stock	Rear Conveyor Assy	£38.20 £31.83
21	MO112793102/0 In stock	Screw	£1.48 £1.23
22	MO112521350/0 In stock	Washer From 01-9-2007	£1.48 £1.23
25	MO112293201/0 In stock	Nut	£1.61 £1.34
27	MO118203854/0 Out of stock	Cap	£1.48 £1.23
29	MO112523060/0 In stock	Washer	£1.48 £1.23
30	MO381006614/0 Out of stock	Handle Lower Part	£39.47 £32.89
32	MO122430312/0 Out of stock	Guide Spring	£5.89 £4.91
33	MO122517856/1 Out of stock	Fulcrum Pin	£4.82 £4.02
34	MO112793301/0 Out of stock	Screw	£1.48 £1.23
35	MO322041955/0 Out of stock	Bushing	£1.66 £1.38
37	MO112819110/0 In stock	Screw	£1.74 £1.45
38	MO122680006/1 In stock	Washer	£1.74 £1.45
39	MO122399900/0 In stock	Black Knob	£1.48 £1.23
40	MO112293200/0 In stock	Nut	£1.48 £1.23
42	MO118566110/0 Out of stock	Push Rod	£1.48 £1.23
43	MO112727786/0 Out of stock	Screw	£1.87 £1.56
44	MO322551685/0 In stock	Cable Holder	£7.13 £5.94
45	MO381000697/0 In stock	Cable Rear Drive	£19.28 £16.07
46	MO381003297/1 In stock	Driving Lever	£20.75 £17.29
47	MO181000688/0 Out of stock	Cable. Thread Engine Brake ST. Engine	£12.92 £10.77
48	MO381003298/1 In stock	Lever	£31.82 £26.52
49	MO112154510/0 In stock	Nut	£1.48 £1.23
50	MO122430313/0 In stock	Guide Spring	£3.74 £3.12
51	MO112292100/0 Out of stock	Nut	£1.34 £1.12
52	MO112728706/0 In stock	Screw	£1.48 £1.23
53	MO322192001/0 Out of stock	Clamp	£1.66 £1.38
54	MO112728702/0 Out of stock	Screw	£1.48 £1.23
55	MO381007098/0 In stock	Speed Control Ass.Y	£44.56 £37.13
56	MO322399809/0 Out of stock	Knob	£1.66 £1.38
57	MO112728300/0 Out of stock	Screw	£1.48 £1.23
