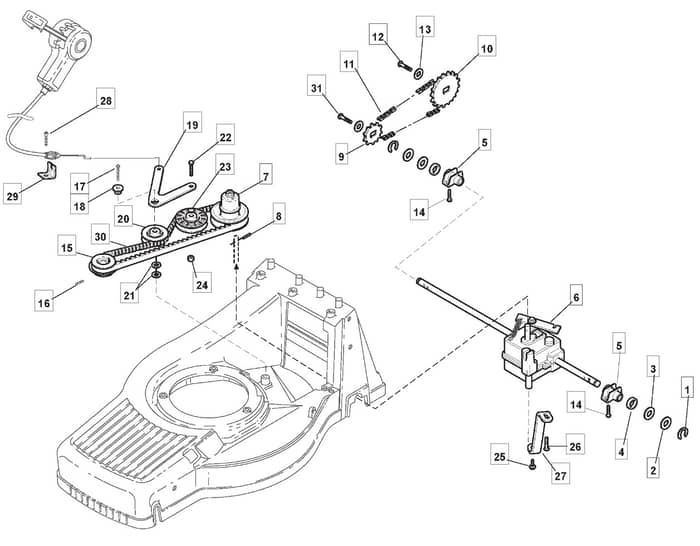

M5510 R PD - 2009 - 292555043/M09 - Mountfield Rotary Mower Transmission Diagram

M5510 R PD - 2009 - 292555043/M09 - Mountfield Rotary Mower Transmission Diagram
M5510 R PD - 2009 - 292555043/M09 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield M5510 R PD Parts Diagram

Product Name - M5510 R PD

Model Year - 2009

Model Type - TU 554 TR-R 4S

Art.N - 292555043/M09

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Spring To 31-8-2006 MO122450063/0
Spring To 31-8-2006
 Out of stock
£1.49 £1.24

  1 Benzing Ring MO112000957/0
Benzing Ring
 Out of stock
£1.49 £1.24

  2 Washer From 01-9-2014 MO112521370/0
Washer From 01-9-2014
 Out of stock
£1.49 £1.24

  2 Washer To 31-8-2014 MO122671659/0
Washer To 31-8-2014
 Out of stock
£1.49 £1.24

  3 Washer MO112520032/0
Washer
 Out of stock
£1.49 £1.24

  4 Grommet MO119035152/0
Grommet
 Out of stock
£4.60 £3.83

  5 Gear Box Support MO322785153/0
Gear Box Support
 In stock
£15.04 £12.53

  6 Gear Box F.R. MO181003087/1
Gear Box F.R.
 Out of stock
£230.26 £191.88

  7 Pulley From 01-9-2013 MO122601932/0
Pulley From 01-9-2013
 Out of stock
£55.26 £46.05

  7 Belt Pulley To 31-8-2013 MO122601916/0
Belt Pulley To 31-8-2013
 Out of stock
£61.33 £51.11

  8 Elastic Pin MO112645700/0
Elastic Pin
 Out of stock
£1.49 £1.24

  9 Ring Gear MO1111-3423-01
Ring Gear
 Out of stock
£14.23 £11.86

  10 Ring Gear MO1111-3424-01
Ring Gear
 In stock
£17.62 £14.68

  11 Chain MO1111-3562-01
Chain
 In stock
£19.31 £16.09

  12 Screw MO112735662/1
Screw
 Out of stock
£2.30 £1.92

  15 Pulley. Crankshaft Ø 22.2 MO122601917/0
Pulley. Crankshaft Ø 22.2
 Out of stock
£23.44 £19.53

  16 Grub Screw MO112714312/0
Grub Screw
 Out of stock
£1.49 £1.24

  17 Screw MO112735669/0
Screw
 Out of stock
£1.49 £1.24

  18 Washer MO122671656/0
Washer
 Out of stock
£7.03 £5.86

  19 Driving Lever MO322320003/0
Driving Lever
 Out of stock
£13.24 £11.03

  20 Pulley MO122601915/0
Pulley
 In stock
£20.58 £17.15

  21 Washer MO112523040/0
Washer
 In stock
£1.49 £1.24

  22 Screw MO112674550/0
Screw
 Out of stock
£1.49 £1.24

  23 Pulley MO122601914/0
Pulley
 In stock
£20.72 £17.27

  24 Nut MO112154510/0
Nut
 In stock
£1.49 £1.24

  25 Screw MO112728300/0
Screw
 Out of stock
£1.49 £1.24

  27 Clamp MO322778407/0
Clamp
 Out of stock
£10.70 £8.92

  28 Screw MO112735664/0
Screw
 In stock
£1.36 £1.13

  29 Support MO322806619/0
Support
 Out of stock
£4.48 £3.73

  30 Belt MO135064383/0
Belt
 In stock
£14.00 £11.67

  31 Self-Tap Screw M6 X 20 MO112735592/0
Self-Tap Screw M6 X 20
 Out of stock
£1.90 £1.58


Description

Mountfield M5510 R PD Parts Diagram

Product Name - M5510 R PD

Model Year - 2009

Model Type - TU 554 TR-R 4S

Art.N - 292555043/M09
