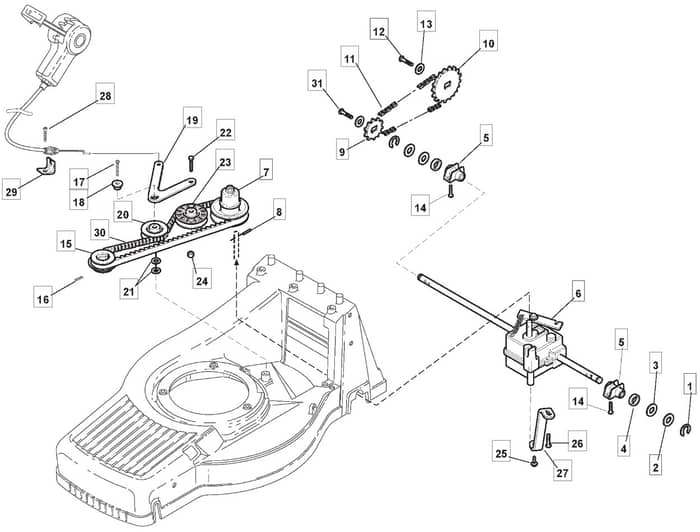

M5510 R PD - 2008 - 292555043/M08 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield M5510 R PD Parts Diagram

Product Name - M5510 R PD

Model Year - 2008

Model Type - TU 554 TR-R 4S

Art.N - 292555043/M08

Engine Model - SV200 Electric Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122450063/0 Out of stock	Spring To 31-8-2006	£1.48 £1.23
1	MO112000957/0 Out of stock	Benzing Ring	£1.48 £1.23
2	MO122671659/0 Out of stock	Washer To 31-8-2014	£1.48 £1.23
2	MO112521370/0 Out of stock	Washer From 01-9-2014	£1.48 £1.23
3	MO112520032/0 Out of stock	Washer	£1.48 £1.23
4	MO119035152/0 Out of stock	Grommet	£4.55 £3.79
5	MO322785153/0 In stock	Gear Box Support	£14.77 £12.31
6	MO181003087/1 Out of stock	Gear Box F.R.	£227.64 £189.70
7	MO122601916/0 Out of stock	Belt Pulley To 31-8-2013	£61.33 £51.11
7	MO122601932/0 Out of stock	Pulley From 01-9-2013	£54.64 £45.53
8	MO112645700/0 Out of stock	Elastic Pin	£1.48 £1.23
9	MO1111-3423-01 Out of stock	Ring Gear	£14.06 £11.72
10	MO1111-3424-01 In stock	Ring Gear	£17.41 £14.51
11	MO1111-3562-01 In stock	Chain	£19.08 £15.90
12	MO112735662/1 Out of stock	Screw	£2.28 £1.90
15	MO122601917/0 Out of stock	Pulley. Crankshaft Ø 22.2	£23.16 £19.30
16	MO112714312/0 Out of stock	Grub Screw	£1.48 £1.23
17	MO112735669/0 Out of stock	Screw	£1.48 £1.23
18	MO122671656/0 Out of stock	Washer	£6.96 £5.80
19	MO322320003/0 Out of stock	Driving Lever	£13.24 £11.03
20	MO122601915/0 In stock	Pulley	£20.35 £16.96
21	MO112523040/0 In stock	Washer	£1.48 £1.23
22	MO112674550/0 Out of stock	Screw	£1.48 £1.23
23	MO122601914/0 In stock	Pulley	£20.48 £17.07
24	MO112154510/0 In stock	Nut	£1.48 £1.23
25	MO112728300/0 Out of stock	Screw	£1.48 £1.23
27	MO322778407/0 Out of stock	Clamp	£10.44 £8.70
28	MO112735664/0 In stock	Screw	£1.34 £1.12
29	MO322806619/0 Out of stock	Support	£4.45 £3.71
30	MO135064383/0 In stock	Belt	£14.33 £11.94
31	MO112735592/0 Out of stock	Self-Tap Screw M6 X 20	£1.87 £1.56
