M5510 R PD - 2008 - 292555043/M08 - Mountfield Rotary Mower Roller Diagram

Description

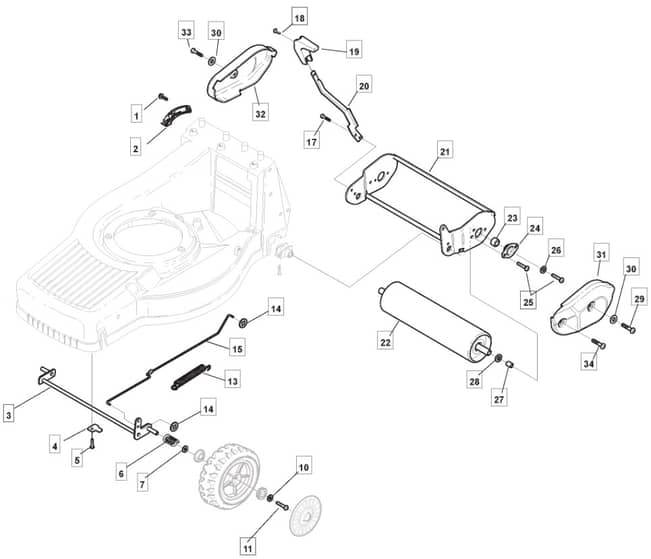

Mountfield M5510 R PD Parts Diagram

Product Name - M5510 R PD

Model Year - 2008

Model Type - TU 554 TR-R 4S

Art.N - 292555043/M08

Engine Model - SV200 Electric Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112728300/0 Out of stock	Screw	£1.48 £1.23
2	MO322735553/0 Out of stock	Sector. Height Adjustment	£8.65 £7.21
3	MO381002847/0 Out of stock	Front Wheel Axle From 01-9-2006	£33.10 £27.58
3	MO381002825/0 Out of stock	Front Wheel Axle To 31-8-2006	£44.56 £37.13
6	MO122430210/0 Out of stock	Bearing	£1.61 £1.34
7	MO112521370/0 Out of stock	Washer	£1.48 £1.23
10	MO112521460/0 Out of stock	Washer	£1.34 £1.12
13	MO122446181/0 Out of stock	Spring	£7.63 £6.36
14	MO112604898/0 Out of stock	Crown Fastener	£1.48 £1.23
17	MO112735664/0 In stock	Screw	£1.34 £1.12
18	MO112728686/0 In stock	Screw To 31-8-2006	£1.48 £1.23
18	MO112728690/0 Out of stock	Screw From 01-9-2006	£1.48 £1.23
19	MO322399805/0 In stock	Knob	£12.86 £10.72
20	MO322321505/0 In stock	Lever. Height Adjustment	£34.69 £28.91
21	MO381005117/0 Out of stock	Roller Support	£152.77 £127.31
22	MO381007405/0 Out of stock	Roller	£273.71 £228.09
23	MO119216036/0 In stock	Bearing	£9.11 £7.59
24	MO322207323/0 Out of stock	Bearing Flange	£17.82 £14.85
25	MO112735662/1 Out of stock	Screw	£2.28 £1.90
27	MO122170820/0 Out of stock	Spacer	£16.87 £14.06
28	MO112523100/0 Out of stock	Washer	£1.87 £1.56
30	MO112523040/0 In stock	Washer	£1.48 £1.23
32	MO322060201/0 In stock	Red Right Roller Prot. Carter	£2.04 £1.70
33	MO112735592/0 Out of stock	Screw	£1.87 £1.56
34	MO112735594/0 Out of stock	Hex-Head Screw M6 X 30	£1.48 £1.23
