M512 PD 3S BW - 2010 - 292157833/M10 - Mountfield Rotary Mower Transmission Diagram

Name: M512 PD 3S BW - 2010 - 292157833/M10 - Mountfield Rotary Mower Transmission Diagram
SKU: m512_pd_3s_bw_292157833_m10_transmission-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M512 PD 3S BW - 2010 - 292157833/M10 - Mountfield Rotary Mower Transmission Diagram

Description

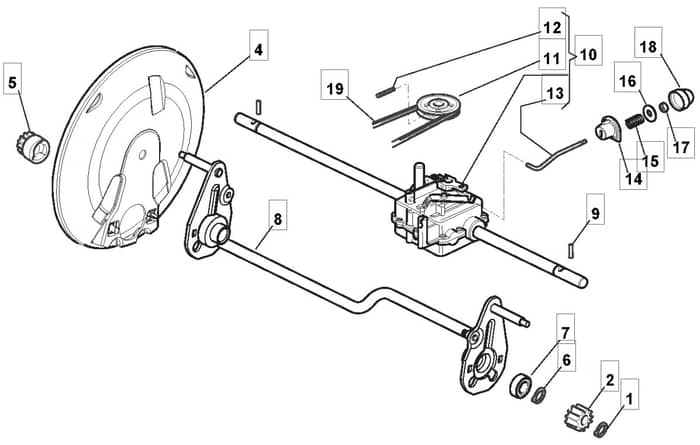

Mountfield M512 PD 3S BW Parts Diagram

Product Name - M512 PD 3S BW

Model Year - 2010

Model Type - NP 534 W TR 3S

Art.N - 292157833/M10

Be the first to review this product

0 product questions

	Part No.	Details
2	MO122570120/1 In stock	Left Pinion	£7.12 £5.93
4	MO322600160/0 Out of stock	Protection. Wheel	£5.02 £4.18
5	MO322570138/0 In stock	Right Pinion	£7.12 £5.93
6	MO112608600/0 Out of stock	Seeger	£1.49 £1.24
7	MO119216035/0 In stock	Bearing	£3.38 £2.82
8	MO381002863/0 Out of stock	Rear Wheel Axle	£96.17 £80.14
9	MO122753000/0 In stock	Pin	£1.49 £1.24
10	MO181003080/0 Out of stock	F.R. Gear Box Pan.Np 3 Speed	£352.15 £293.46
11	MO122601908/0 Out of stock	Pulley	£5.42 £4.52
12	MO112645705/0 Out of stock	Elastic Pin ø5X32	£1.49 £1.24
13	MO122033282/1 Out of stock	Adjustment Rod	£6.28 £5.23
14	MO122041957/1 Out of stock	Bushing	£1.49 £1.24
15	MO122450063/0 Out of stock	Spring	£1.49 £1.24
16	MO322680009/0 Out of stock	Washer	£1.75 £1.46
17	MO112154510/0 In stock	Nut	£1.49 £1.24
18	MO122110230/0 Out of stock	Hub Cover	£1.49 £1.24
19	MO135064197/0 Out of stock	Trapezoidal Belt Z34 Lp 885	£10.67 £8.89
