M5030 PD - 2009 - 292502033/M09 - Mountfield Rotary Mower Wheels Diagram

Description

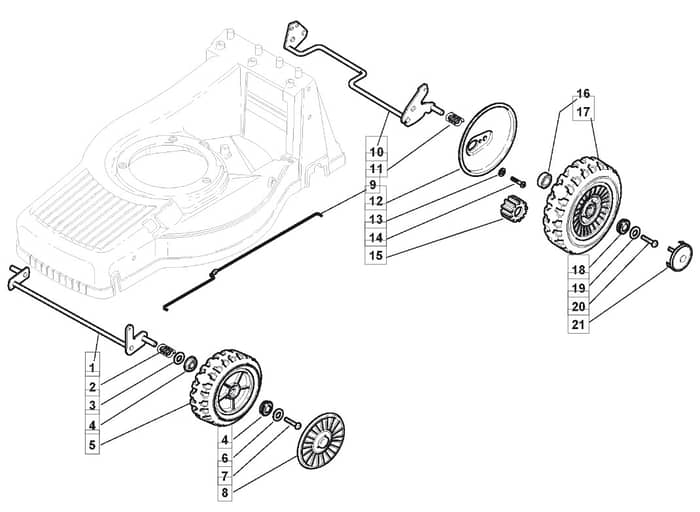

Mountfield M5030 PD Parts Diagram

Product Name - M5030 PD

Model Year - 2009

Model Type - TU 504 TR

Art.N - 292502033/M09

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381002845/0 Out of stock	Front Wheel Axle From 01-9-2006	£33.10 £27.58
2	MO122430210/0 Out of stock	Bearing	£1.61 £1.34
3	MO112521370/0 Out of stock	Washer	£1.48 £1.23
4	MO122122206/0 In stock	Bearing	£1.74 £1.45
5	MO381007351/0 In stock	Wheel Ø 170 From 01-9-2006	£12.86 £10.72
5	MO381007344/0 Out of stock	Wheel To 31-8-2006	£28.01 £23.34
8	MO322110721/0 Out of stock	Hub Cap Grey Grey	£2.28 £1.90
10	MO381002823/0 Out of stock	Rear Wheel Axle	£48.37 £40.31
11	MO122430215/0 Out of stock	Spring	£3.08 £2.57
15	MO122570125/0 In stock	Pinion	£13.93 £11.61
17	MO381007361/0 Out of stock	Wheel	£20.24 £16.87
18	MO122122201/0 In stock	Bearing	£2.15 £1.79
19	MO112521460/0 Out of stock	Washer To 31-8-2009	£1.34 £1.12
20	MO112735662/1 Out of stock	Screw	£2.28 £1.90
21	MO322110384/0 In stock	Hub Cap 190.215 [Grey]	£6.88 £5.73
