M5010 PD - 2009 - 292502043/M09 - Mountfield Rotary Mower Transmission Diagram

Description

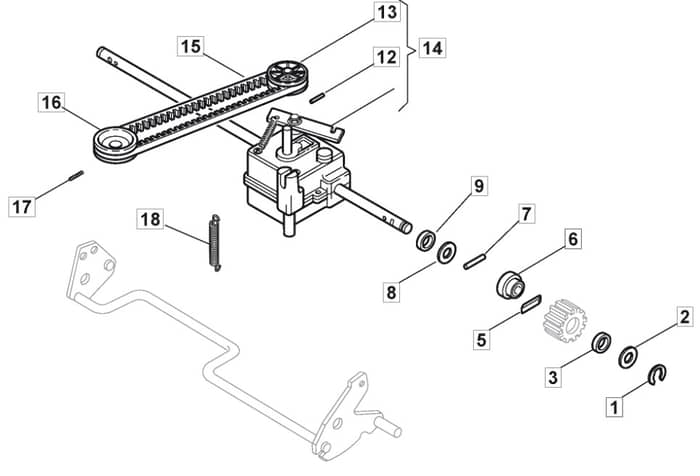

Mountfield M5010 PD Parts Diagram

Product Name - M5010 PD

Model Year - 2009

Model Type - TU 504 TR

Art.N - 292502043/M09

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112000957/0 Out of stock	Benzing Ring	£1.49 £1.24
1	MO122450063/0 Out of stock	Spring To 31-8-2006	£1.49 £1.24
3	MO322160520/0 Out of stock	Dust Cover Disc	£1.49 £1.24
5	MO122076645/0 Out of stock	Key	£1.63 £1.36
6	MO322170630/1 Out of stock	Spacer	£4.74 £3.95
7	MO122753002/0 Out of stock	Pin	£1.90 £1.58
8	MO112520032/0 Out of stock	Washer	£1.49 £1.24
9	MO119035152/0 Out of stock	Grommet	£4.60 £3.83
12	MO112620310/0 Out of stock	Pin	£1.90 £1.58
13	MO122601913/0 Out of stock	Pulley	£16.25 £13.54
14	MO181003085/0 Out of stock	Gear Box F.R.	£155.76 £129.80
15	MO135063175/0 In stock	Belt	£9.23 £7.69
16	MO122601918/0 Out of stock	Pulley. Crankshaft Ø 22.2	£24.05 £20.04
17	MO112714312/0 Out of stock	Grub Screw	£1.49 £1.24
18	MO122450434/0 In stock	Spring	£6.37 £5.31
