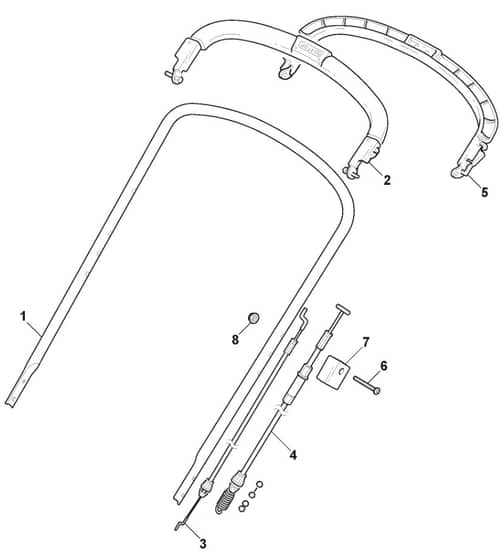

M484 R ES - 2010 - 292505543/UM9 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield M484 R ES Parts Diagram

Product Name - M484 R/ES

Model Year - 2010

Model Type - TU 504 TR-R/E 4S

Art.N - 292505543/UM9

	Part No.	Details
2	MO381003330/0 Out of stock	Lever. Engine Brake From 01-9-2010	£63.65 £53.04
2	MO381003298/1 In stock	Lever	£31.15 £25.96
3	MO181000688/0 Out of stock	Cable. Thread Engine Brake	£13.07 £10.89
4	MO381000697/0 In stock	Cable Rear Drive	£19.51 £16.26
5	MO381003297/1 In stock	Driving Lever	£21.26 £17.72
6	MO112727783/0 Out of stock	Screw	£1.63 £1.36
7	MO322551685/0 In stock	Cable Holder	£7.24 £6.03
8	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.49 £1.24
