M484 R ES - 2009 - 292505523/UM9 - Mountfield Rotary Mower Transmission Diagram

M484 R ES - 2009 - 292505523/UM9 - Mountfield Rotary Mower Transmission Diagram
M484 R ES - 2009 - 292505523/UM9 - Mountfield Rotary Mower Transmission Diagram

Description

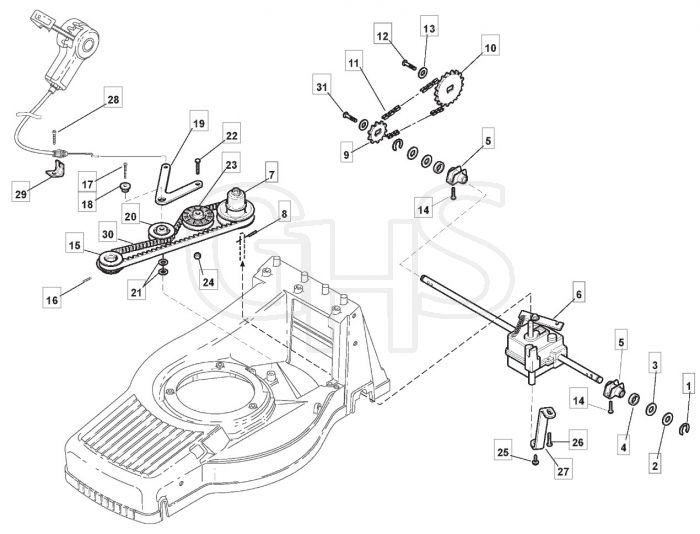

Mountfield M484 R ES Parts Diagram

Product Name - M484 R/ES

Model Year - 2009

Model Type - TU 504 TR-R/E 4S

Art.N - 292505523/UM9

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Spring To 31-8-2006 MO122450063/0
Spring To 31-8-2006
 Out of stock
£1.39 £1.16

  1 Benzing Ring MO112000957/0
Benzing Ring
 Out of stock
£1.39 £1.16

  2 Washer To 31-8-2014 MO122671659/0
Washer To 31-8-2014
 Out of stock
£1.39 £1.16

  2 Washer From 01-9-2014 MO112521370/0
Washer From 01-9-2014
 Out of stock
£1.39 £1.16

  3 Washer MO112520032/0
Washer
 Out of stock
£1.39 £1.16

  4 Grommet MO119035152/0
Grommet
 Out of stock
£4.31 £3.59

  5 Gear Box Support MO322785153/0
Gear Box Support
 In stock
£14.09 £11.74

  6 Gear Box F.R. MO181003087/1
Gear Box F.R.
 Out of stock
£215.88 £179.90

  7 Pulley From 01-9-2013 MO122601932/0
Pulley From 01-9-2013
 Out of stock
£51.80 £43.17

  7 Belt Pulley To 31-8-2013 MO122601916/0
Belt Pulley To 31-8-2013
 Out of stock
£61.33 £51.11

  8 Elastic Pin MO112645700/0
Elastic Pin
 Out of stock
£1.39 £1.16

  9 Ring Gear MO1111-3423-01
Ring Gear
 Out of stock
£13.34 £11.12

  10 Ring Gear MO1111-3424-01
Ring Gear
 In stock
£16.51 £13.76

  11 Chain MO1111-3562-01
Chain
 In stock
£18.11 £15.09

  12 Screw MO112735662/1
Screw
 Out of stock
£2.17 £1.81

  15 Pulley. Crankshaft Ø 22.2 MO122601917/0
Pulley. Crankshaft Ø 22.2
 Out of stock
£21.97 £18.31

  16 Grub Screw MO112714312/0
Grub Screw
 Out of stock
£1.39 £1.16

  17 Screw MO112735669/0
Screw
 Out of stock
£1.39 £1.16

  18 Washer MO122671656/0
Washer
 Out of stock
£6.60 £5.50

  20 Pulley MO122601915/0
Pulley
 In stock
£19.31 £16.09

  21 Washer MO112523040/0
Washer
 In stock
£1.39 £1.16

  22 Screw MO112674550/0
Screw
 Out of stock
£1.39 £1.16

  23 Pulley MO122601914/0
Pulley
 In stock
£19.43 £16.19

  24 Nut MO112154510/0
Nut
 In stock
£1.39 £1.16

  25 Screw MO112728300/0
Screw
 Out of stock
£1.39 £1.16

  27 Clamp MO322778409/0
Clamp
 Out of stock
£13.97 £11.64

  28 Screw MO112735664/0
Screw
 In stock
£1.28 £1.07

  29 Support MO322806619/0
Support
 Out of stock
£4.20 £3.50

  30 Belt MO135064378/0
Belt
 Out of stock
£12.71 £10.59

  31 Self-Tap Screw M6 X 20 MO112735592/0
Self-Tap Screw M6 X 20
 Out of stock
£1.78 £1.48


Description

Mountfield M484 R ES Parts Diagram

Product Name - M484 R/ES

Model Year - 2009

Model Type - TU 504 TR-R/E 4S

Art.N - 292505523/UM9
