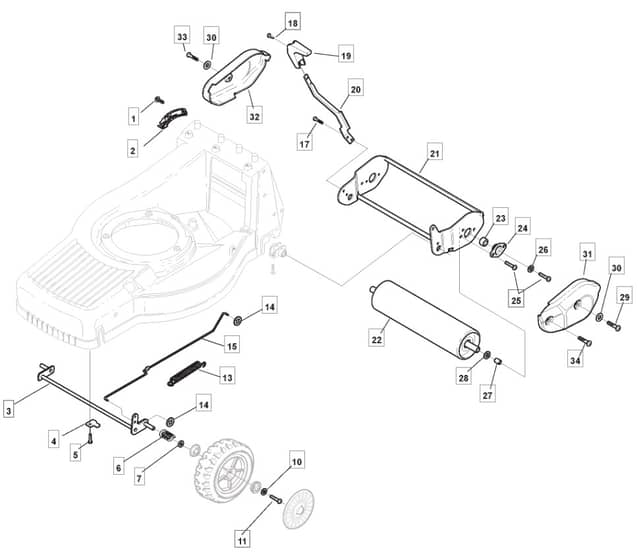

M480 R ES - 2008 - 292505523/UM8 - Mountfield Rotary Mower Roller Diagram

Description

Mountfield M480 R ES Parts Diagram

Product Name - M480R/ES

Model Year - 2008

Model Type - TU 504 TR/E-R 4S

Art.N - 292505523/UM8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112728300/0 Out of stock	Screw	£1.49 £1.24
2	MO322735553/0 Out of stock	Sector. Height Adjustment	£8.74 £7.28
3	MO381002845/0 Out of stock	Front Wheel Axle From 01-9-2006	£33.10 £27.58
6	MO122430210/0 Out of stock	Bearing	£1.63 £1.36
7	MO112521370/0 Out of stock	Washer	£1.49 £1.24
10	MO112521460/0 Out of stock	Washer	£1.36 £1.13
13	MO122446181/0 Out of stock	Spring	£7.72 £6.43
14	MO112604898/0 Out of stock	Crown Fastener	£1.49 £1.24
17	MO112735664/0 In stock	Screw	£1.36 £1.13
18	MO112728690/0 Out of stock	Screw From 01-9-2006	£1.49 £1.24
18	MO112728686/0 Out of stock	Screw To 31-8-2006	£1.49 £1.24
19	MO322399805/0 Out of stock	Knob	£13.20 £11.00
20	MO322321505/0 In stock	Lever. Height Adjustment	£35.08 £29.23
21	MO381005115/0 Out of stock	Roller Support	£123.25 £102.71
22	MO1111-3429-01 Out of stock	Roller	£250.57 £208.81
23	MO119216036/0 Out of stock	Bearing	£9.22 £7.68
24	MO322207323/0 Out of stock	Bearing Flange	£17.82 £14.85
25	MO112735662/1 Out of stock	Screw	£2.30 £1.92
27	MO122170820/0 Out of stock	Spacer	£17.06 £14.22
28	MO112523100/0 Out of stock	Washer	£1.90 £1.58
30	MO112523040/0 In stock	Washer	£1.49 £1.24
31	MO322060202/0 Out of stock	Red Left Roller Prot. Carter	£2.30 £1.92
32	MO322060201/0 In stock	Red Right Roller Prot. Carter	£2.10 £1.75
33	MO112735592/0 Out of stock	Screw	£1.90 £1.58
34	MO112735594/0 Out of stock	Hex-Head Screw M6 X 30	£1.49 £1.24
