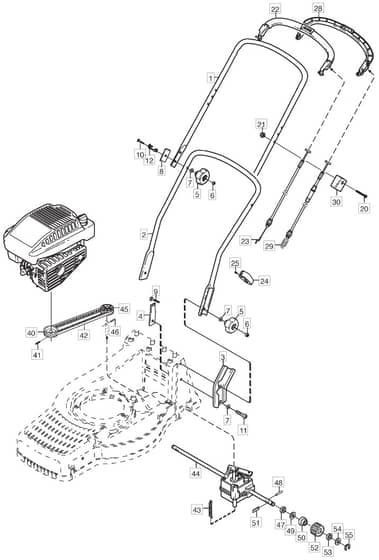

M4 SPE TRI-CUT - 2004 - 12-5698-81 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield M4 SPE TRI-CUT Parts Diagram

Product Name - M4 SPE TRI-CUT

Model Year - 2004

Model Type -

Art.N - 12-5698-81

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006618/1 Out of stock	Handlebar Upper Part	£48.37 £40.31
2	MO381006613/0 Out of stock	Handlebar-Lower Part	£36.92 £30.77
3	MO322778405/0 Out of stock	Handlebar Attachment	£23.04 £19.20
4	MO322551635/0 Out of stock	Attachment Plate	£3.70 £3.08
5	MO322399810/0 In stock	Locking Knob	£7.90 £6.58
6	MO112361005/0 Out of stock	Nut	£4.02 £3.35
7	MO9699-0028-02 Out of stock	Washer	£1.66 £1.38
8	MO322545137/0 Out of stock	Reinforcement	£1.66 £1.38
9	MO9899-3545-12 Out of stock	Screw L . 45 mm	£4.45 £3.71
10	MO9899-3557-12 Out of stock	Screw L . 57 mm	£1.91 £1.59
11	MO112760515/0 Out of stock	Screw	£1.48 £1.23
12	MO122430311/0 In stock	Eyelink	£6.56 £5.47
20	MO112727783/0 Out of stock	Screw L . 40 mm	£1.61 £1.34
21	MO112154510/0 In stock	Lock Nut	£1.48 £1.23
22	MO381003298/1 In stock	Control Handle (Eng.Brake	£31.82 £26.52
23	MO181000686/0 Out of stock	Cable. Thread Engine Brake	£12.66 £10.55
24	MO322192001/0 Out of stock	Cable Holder	£1.66 £1.38
25	MO112728706/0 In stock	Screw	£1.48 £1.23
28	MO381003297/1 In stock	Clutch Lever	£20.75 £17.29
29	MO381000697/0 In stock	Clutch Cable	£19.28 £16.07
30	MO322551685/0 In stock	Cable Holder	£7.13 £5.94
40	MO122601918/0 Out of stock	Engine Belt Pulley	£23.77 £19.81
41	MO112714312/0 Out of stock	Screw	£1.48 £1.23
43	MO122450434/0 In stock	Tension Spring	£6.29 £5.24
44	MO181003086/0 Out of stock	Transmission Turbo 48.55	£214.25 £178.54
45	MO122601913/0 Out of stock	Belt Pulley	£16.07 £13.39
46	MO9595-0235-00 Out of stock	Pin	£2.04 £1.70
47	MO119035152/0 Out of stock	Seal Ring	£4.55 £3.79
48	MO1111-2382-01 Out of stock	Pin	£6.56 £5.47
50	MO322170630/1 Out of stock	Washer	£4.72 £3.93
51	MO122076645/0 Out of stock	Key	£1.61 £1.34
52	MO122570125/0 In stock	Gear Wheel	£13.93 £11.61
53	MO322160520/0 Out of stock	Washer	£1.66 £1.38
54	MO112520032/0 Out of stock	Washer	£1.48 £1.23
55	MO112000957/0 Out of stock	Circlip - Use 112000957.0	£1.48 £1.23
