M4 SPE TRI-CUT - 2003 - 12-5698-80 - Mountfield Rotary Mower Wheels Diagram

Name: M4 SPE TRI-CUT - 2003 - 12-5698-80 - Mountfield Rotary Mower Wheels Diagram
SKU: m4_spe_tri_cut_12_5698_80_wheels-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M4 SPE TRI-CUT - 2003 - 12-5698-80 - Mountfield Rotary Mower Wheels Diagram

Description

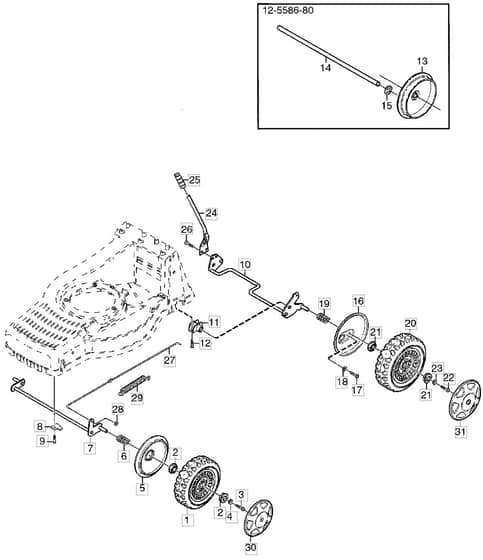

Mountfield M4 SPE TRI-CUT Parts Diagram

Product Name - M4 SPE TRI-CUT

Model Year - 2003

Model Type -

Art.N - 12-5698-80

Be the first to review this product

0 product questions

	Part No.	Details
1	MO1111-2784-01 In stock	Wheel	£17.68 £14.73
6	MO122430210/0 Out of stock	Spring-Wheel Axle	£1.61 £1.34
10	MO381002823/0 Out of stock	Rear Axle	£48.37 £40.31
11	MO322785153/0 In stock	Bushing	£14.77 £12.31
12	MO112735664/0 In stock	Screw	£1.34 £1.12
17	MO112735661/0 Out of stock	Screw	£1.48 £1.23
18	MO112523040/0 In stock	Washer	£1.48 £1.23
19	MO122430215/0 Out of stock	Spring	£3.08 £2.57
20	MO1111-2665-01 Out of stock	Wheel Pos 21 incl.	£30.47 £25.39
21	MO122122201/0 In stock	Ball Bearing	£2.15 £1.79
23	MO9699-0100-02 Out of stock	Flat Washer	£1.66 £1.38
25	MO322399808/0 Out of stock	Lever Knob	£2.42 £2.02
26	MO112735662/1 Out of stock	Screw	£2.28 £1.90
28	MO112604898/0 Out of stock	Starlock	£1.48 £1.23
29	MO122446181/0 Out of stock	Spring	£7.63 £6.36
30	MO322110383/0 Out of stock	Hub Cap (Silver)	£6.36 £5.30
31	MO322110384/0 In stock	Coperchio Mozzo	£6.88 £5.73
