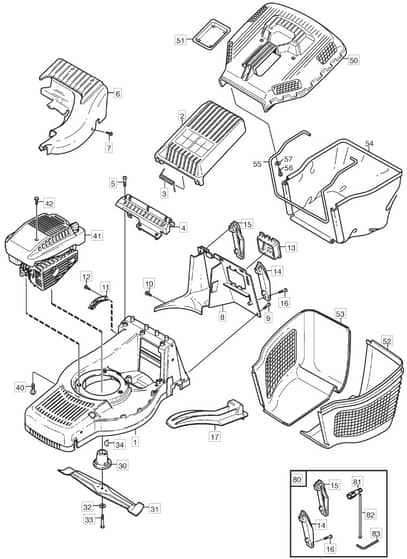

M4 SP TRI-CUT - 2003 - 12-5686-80 - Mountfield Rotary Mower Main Assembly Diagram

Name: M4 SP TRI-CUT - 2003 - 12-5686-80 - Mountfield Rotary Mower Main Assembly Diagram
SKU: m4_sp_tri_cut_12_5686_80_main_assembly-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

M4 SP TRI-CUT - 2003 - 12-5686-80 - Mountfield Rotary Mower Main Assembly Diagram

Description

Mountfield M4 SP TRI-CUT Parts Diagram

Product Name - M4 SP TRI-CUT

Model Year - 2003

Model Type -

Art.N - 12-5686-80

Be the first to review this product

0 product questions

	Part No.	Details
2	MO322600068/2 Out of stock	Stone Guard. Black	£11.15 £9.29
3	MO122450430/0 Out of stock	Spring	£4.31 £3.59
4	MO322785179/0 Out of stock	Flap Attachment-Black	£37.57 £31.31
8	MO322108277/0 Out of stock	Rear Attachment (Combi 48-55)	£44.44 £37.03
9	MO112735664/0 In stock	Screw	£1.28 £1.07
11	MO322735563/0 In stock	Height Adjusting Plate	£13.51 £11.26
12	MO112728300/0 Out of stock	Screw	£1.39 £1.16
13	MO322109531/0 Out of stock	Battery Holder	£45.74 £38.12
16	MO112728692/0 Out of stock	Screw	£1.48 £1.23
17	MO322140231/0 Out of stock	Mulch Plug (Combi 48)	£43.28 £36.07
30	MO122465618/0 In stock	Blade Holder	£8.51 £7.09
31	MO181004143/0 In stock	Blade	£23.05 £19.21
32	MO9696-0011-01 Out of stock	Washer	£8.89 £7.41
33	MO112735698/0 In stock	Screw	£1.66 £1.38
34	MO112139100/0 In stock	Key	£1.39 £1.16
40	MO120001064/0 Out of stock	Screw	£9.14 £7.62
50	MO322486095/0 Out of stock	Collector-Upper Part Black	£50.80 £42.33
51	MO322486098/0 Out of stock	Cover	£5.09 £4.24
53	MO322486099/0 Out of stock	Collector. Lower Rh	£29.03 £24.19
80	MO381008658/1 Out of stock	Accessory Bag Pos 14-16. 81-83 incl	£15.74 £13.12
