M4 SP TRI-CUT - 2003 - 12-5686-80 - Mountfield Rotary Mower Handle Diagram

Name: M4 SP TRI-CUT - 2003 - 12-5686-80 - Mountfield Rotary Mower Handle Diagram
SKU: m4_sp_tri_cut_12_5686_80_handle-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

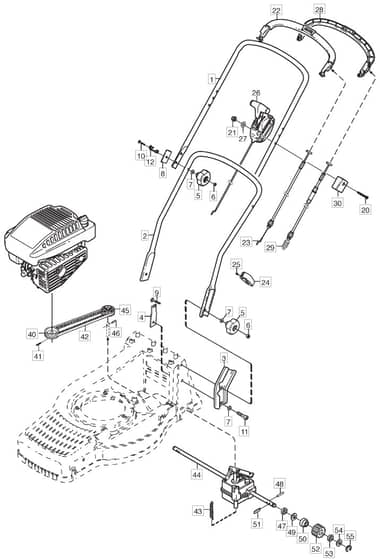

M4 SP TRI-CUT - 2003 - 12-5686-80 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield M4 SP TRI-CUT Parts Diagram

Product Name - M4 SP TRI-CUT

Model Year - 2003

Model Type -

Art.N - 12-5686-80

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006618/1 Out of stock	Handlebar Upper Part	£48.76 £40.63
2	MO381006613/0 Out of stock	Handlebar-Lower Part	£36.56 £30.47
3	MO322778405/0 Out of stock	Handlebar Attachment	£22.99 £19.16
4	MO322551635/0 Out of stock	Attachment Plate	£3.97 £3.31
5	MO322399810/0 Out of stock	Locking Knob	£7.98 £6.65
6	MO112361005/0 Out of stock	Nut	£4.07 £3.39
7	MO9699-0028-02 Out of stock	Washer	£1.49 £1.24
8	MO322545137/0 Out of stock	Reinforcement	£1.49 £1.24
9	MO9899-3545-12 Out of stock	Screw L . 45 mm	£4.63 £3.86
10	MO9899-3557-12 Out of stock	Screw L . 57 mm	£1.90 £1.58
11	MO112760515/0 Out of stock	Screw	£1.49 £1.24
12	MO122430311/0 Out of stock	Eyelink	£6.64 £5.53
20	MO112727783/0 Out of stock	Screw L . 40 mm	£1.63 £1.36
21	MO112154510/0 In stock	Lock Nut	£1.49 £1.24
22	MO381003298/1 In stock	Control Handle (Eng.Brake	£31.15 £25.96
23	MO181000686/0 Out of stock	Cable. Thread Engine Brake	£12.80 £10.67
24	MO322192001/0 Out of stock	Cable Holder	£1.49 £1.24
25	MO112728706/0 In stock	Screw	£1.49 £1.24
28	MO381003297/1 In stock	Clutch Lever	£21.26 £17.72
29	MO381000697/0 In stock	Clutch Cable	£19.51 £16.26
30	MO322551685/0 In stock	Cable Holder	£7.24 £6.03
40	MO122601918/0 Out of stock	Engine Belt Pulley	£24.05 £20.04
41	MO112714312/0 Out of stock	Screw	£1.49 £1.24
43	MO122450434/0 In stock	Tension Spring	£6.37 £5.31
44	MO181003086/0 Out of stock	Transmission Turbo 48.55	£216.71 £180.59
45	MO122601913/0 Out of stock	Belt Pulley	£16.25 £13.54
46	MO9595-0235-00 Out of stock	Pin	£2.44 £2.03
47	MO119035152/0 Out of stock	Seal Ring	£4.60 £3.83
48	MO1111-2382-01 Out of stock	Pin	£6.64 £5.53
50	MO322170630/1 Out of stock	Washer	£4.74 £3.95
51	MO122076645/0 Out of stock	Key	£1.63 £1.36
52	MO122570125/0 In stock	Gear Wheel	£14.09 £11.74
53	MO322160520/0 Out of stock	Washer	£1.49 £1.24
54	MO112520032/0 Out of stock	Washer	£1.49 £1.24
55	MO112000957/0 Out of stock	Circlip - Use 112000957.0	£1.49 £1.24
