Description

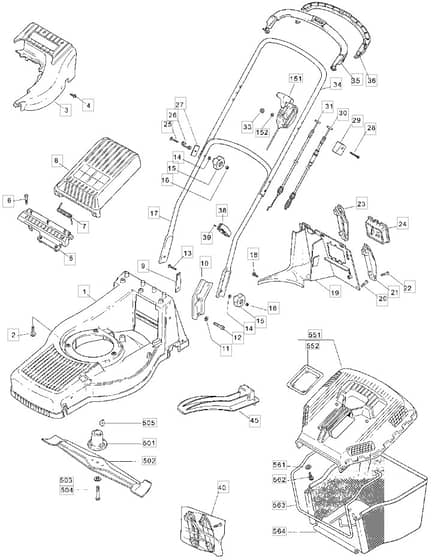

Mountfield M4 SP Parts Diagram

Product Name - M4 SP

Model Year - 2005

Model Type - N/A

Art.N - 12-5686-82

Ref. Img. Part No. Details
  2 Screw
Screw
MO120001064/0 Out of stock
Screw
£9.76 £8.13

  5 Flap Attachment-Black
Flap Attachment-Black
MO322785179/0 Out of stock
Flap Attachment-Black
£40.07 £33.39

  7 Spring
Spring
MO122450430/0 Out of stock
Spring
£4.60 £3.83

  8 Stone Guard. Black
Stone Guard. Black
MO322600068/2 Out of stock
Stone Guard. Black
£11.89 £9.91

  9 Attachment Plate
Attachment Plate
MO322551635/0 Out of stock
Attachment Plate
£3.97 £3.31

  10 Handlebar Attachment
Handlebar Attachment
MO322778405/0 Out of stock
Handlebar Attachment
£22.99 £19.16

  12 Screw
Screw
MO112760515/0 Out of stock
Screw
£1.49 £1.24

  14 Washer
Washer
MO112521350/0 In stock
Washer
£1.49 £1.24

  15 Locking Knob
Locking Knob
MO322399810/0 Out of stock
Locking Knob
£7.98 £6.65

  16 Nut
Nut
MO112361005/0 Out of stock
Nut
£4.07 £3.39

  17 Handle-Lower (Black)
Handle-Lower (Black)
MO381006613/0 Out of stock
Handle-Lower (Black)
£36.56 £30.47

  19 Rear Attachment (Combi 48-55)
Rear Attachment (Combi 48-55)
MO322108277/0 Out of stock
Rear Attachment (Combi 48-55)
£47.40 £39.50

  20 Screw
Screw
MO112735664/0 In stock
Screw
£1.36 £1.13

  22 Screw
Screw
MO112728692/0 Out of stock
Screw
£1.48 £1.23

  24 Battery Holder
Battery Holder
MO322109531/0 Out of stock
Battery Holder
£48.79 £40.66

  25 Screw
Screw
MO112820655/0 Out of stock
Screw
£1.36 £1.13

  26 Eyelink
Eyelink
MO122430311/0 Out of stock
Eyelink
£6.64 £5.53

  27 Reinforcement
Reinforcement
MO322545137/0 Out of stock
Reinforcement
£1.49 £1.24

  28 Screw
Screw
MO112727786/0 Out of stock
Screw
£1.90 £1.58

  29 Cable Holder
Cable Holder
MO322551685/0 In stock
Cable Holder
£7.24 £6.03

  30 Clutch Cable
Clutch Cable
MO381000697/0 In stock
Clutch Cable
£19.51 £16.26

  31 Cable. Thread Engine Brake
Cable. Thread Engine Brake
MO181000686/0 Out of stock
Cable. Thread Engine Brake
£12.80 £10.67

  33 Lock Nut
Lock Nut
MO112154510/0 In stock
Lock Nut
£1.49 £1.24

  34 Handle-Upper (Black)
Handle-Upper (Black)
MO381006618/1 Out of stock
Handle-Upper (Black)
£48.76 £40.63

  35 Control Handle (Eng.Brake
Control Handle (Eng.Brake
MO381003298/1 In stock
Control Handle (Eng.Brake
£31.15 £25.96

  36 Clutch Lever
Clutch Lever
MO381003297/1 In stock
Clutch Lever
£21.26 £17.72

  38 Cable Holder
Cable Holder
MO322192001/0 Out of stock
Cable Holder
£1.49 £1.24

  39 Screw
Screw
MO112728706/0 In stock
Screw
£1.49 £1.24

  40 Accessory Bag
Accessory Bag
MO381008658/1 Out of stock
Accessory Bag
£16.79 £13.99

  45 Mulch Plug (Combi 48)
Mulch Plug (Combi 48)
MO322140231/0 Out of stock
Mulch Plug (Combi 48)
£43.28 £36.07

  151 Throttle Cable
Throttle Cable
MO181007128/0 In stock
Throttle Cable
£22.96 £19.13

  152 Washer
Washer
MO112523040/0 In stock
Washer
£1.49 £1.24

  501 Blade Holder
Blade Holder
MO122465618/0 In stock
Blade Holder
£8.77 £7.31

  502 Blade
Blade
MO181004143/0 In stock
Blade
£23.75 £19.79

  503 Washer
Washer
MO112530140/0 Out of stock
Washer
£1.90 £1.58

  504 Screw
Screw
MO112735698/0 In stock
Screw
£1.75 £1.46

  505 Key
Key
MO112139100/0 In stock
Key
£1.49 £1.24

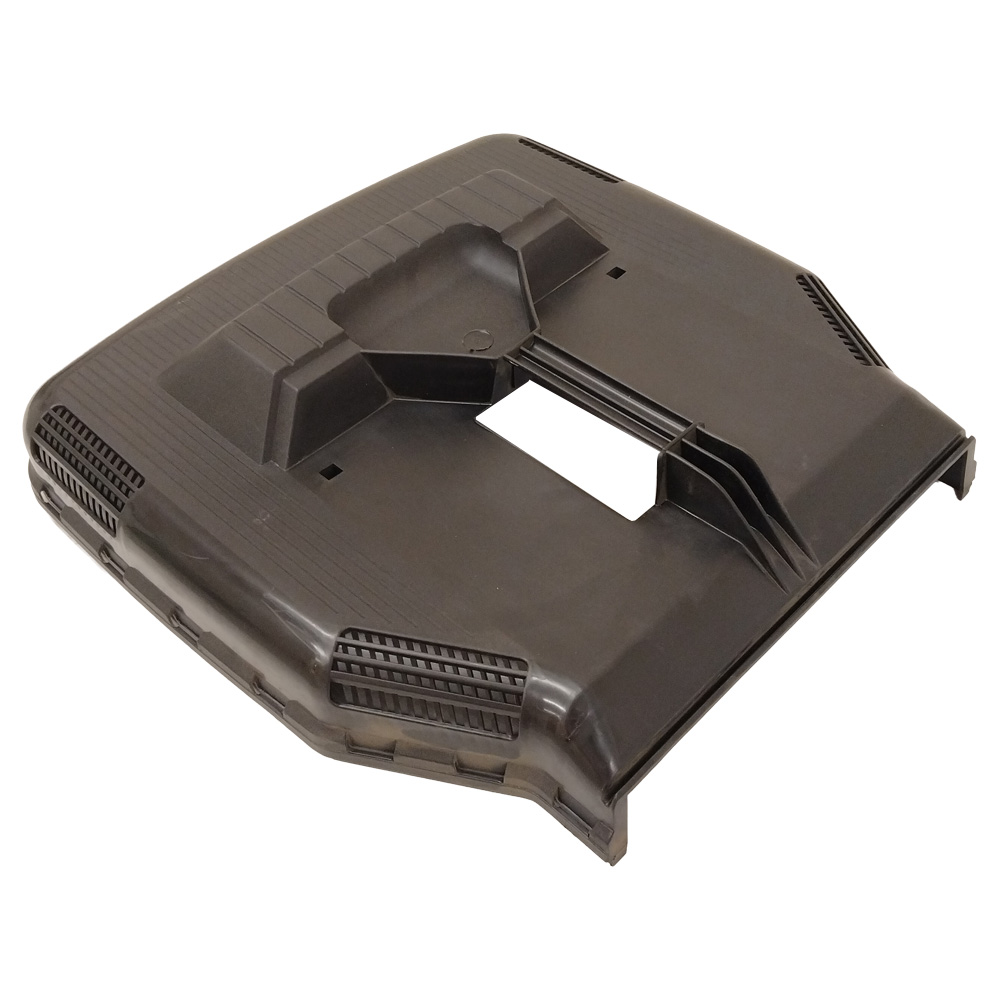

  551 Collector-Upper Part Black
Collector-Upper Part Black
MO322486095/0 Out of stock
Collector-Upper Part Black
£54.18 £45.15

  552 Cover
Cover
MO322486098/0 Out of stock
Cover
£5.42 £4.52

  561 Flat Washer
Flat Washer
MO112521460/0 Out of stock
Flat Washer
£1.36 £1.13

  562 Screw
Screw
MO112728300/0 Out of stock
Screw
£1.49 £1.24

  563 Wire Clamp
Wire Clamp
MO122608528/0 Out of stock
Wire Clamp
£24.11 £20.09

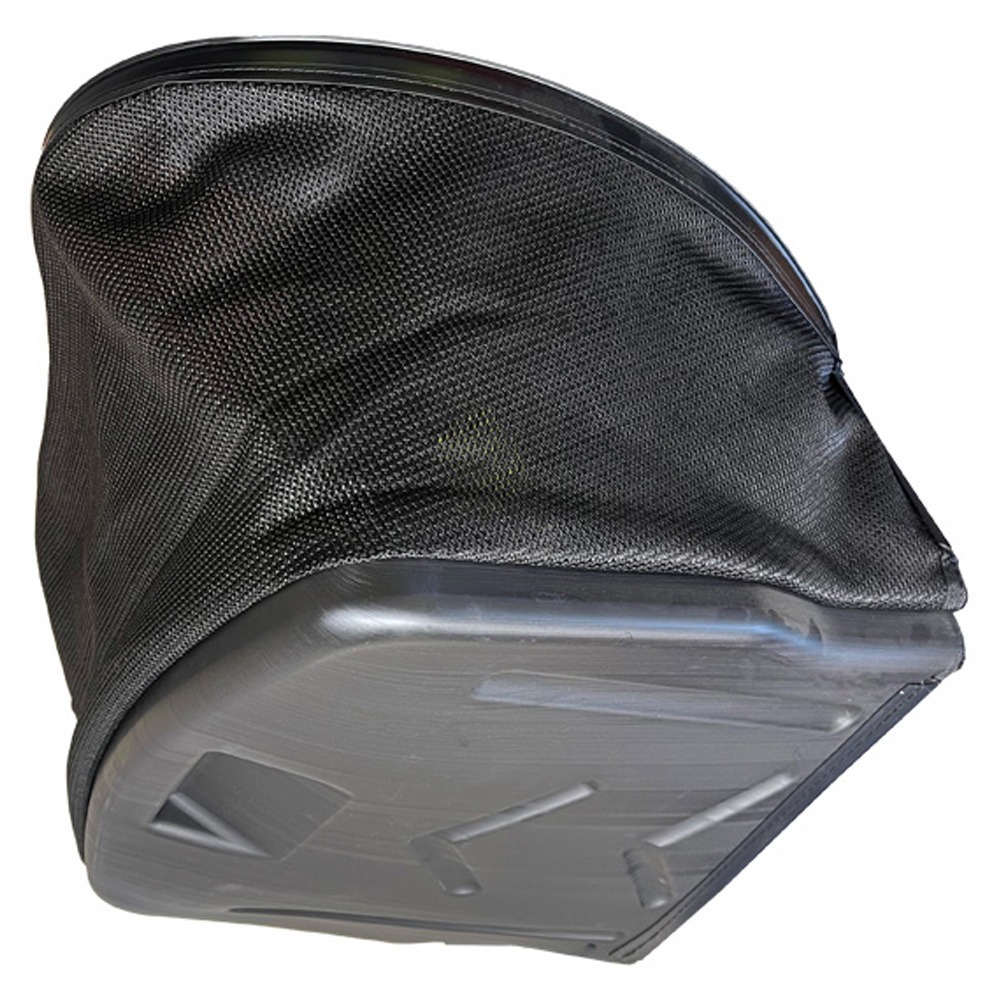

  564 Collecting Bag
Collecting Bag
MO181002235/0 Out of stock
Collecting Bag
£58.25 £48.54


Description

Mountfield M4 SP Parts Diagram

Product Name - M4 SP

Model Year - 2005

Model Type - N/A

Art.N - 12-5686-82
