M4 HP TRI-CUT - 2004 - 12-5586-81 - Mountfield Rotary Mower Main Assembly Diagram

Description

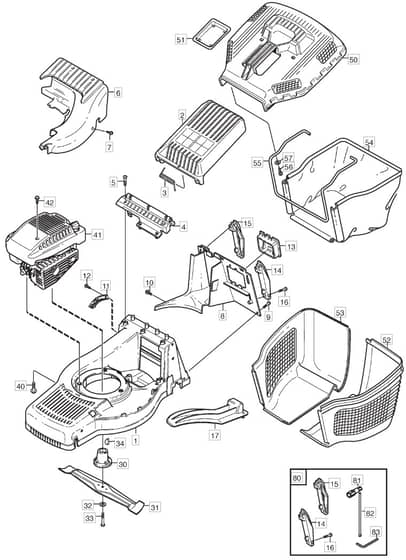

Mountfield M4 HP TRI-CUT Parts Diagram

Product Name - M4 HP TRI-CUT

Model Year - 2004

Model Type -

Art.N - 12-5586-81

Be the first to review this product

0 product questions

	Part No.	Details
2	MO322600068/2 Out of stock	Stone Guard. Black	£9.94 £8.28
3	MO122450430/0 Out of stock	Spring	£4.55 £3.79
4	MO322785179/0 Out of stock	Flap Attachment-Black	£5.09 £4.24
8	MO322108277/0 Out of stock	Rear Attachment (Combi 48-55)	£47.10 £39.25
9	MO112735664/0 In stock	Screw	£1.34 £1.12
11	MO322735563/0 In stock	Height Adjusting Plate	£14.14 £11.78
13	MO322109531/0 Out of stock	Battery Holder	£14.34 £11.95
16	MO112728692/0 Out of stock	Screw	£1.48 £1.23
17	MO322140231/0 Out of stock	Mulch Plug (Combi 48)	£43.28 £36.07
30	MO122465618/0 In stock	Blade Holder	£8.98 £7.48
31	MO181004143/0 In stock	Blade	£24.19 £20.16
32	MO9696-0011-01 Out of stock	Washer	£7.76 £6.47
33	MO112735698/0 In stock	Screw	£1.74 £1.45
34	MO112139100/0 In stock	Key	£1.48 £1.23
40	MO120001064/0 Out of stock	Screw	£9.64 £8.03
50	MO322486095/0 Out of stock	Collector-Upper Part Black	£44.56 £37.13
51	MO322486098/0 Out of stock	Cover	£5.35 £4.46
53	MO322486099/0 Out of stock	Collector. Lower Rh	£31.82 £26.52
55	MO1111-2843-01 Out of stock	Wire Clamp	£41.51 £34.59
56	MO112728300/0 Out of stock	Screw	£1.48 £1.23
57	MO9699-0100-02 Out of stock	Flat Washer	£1.66 £1.38
80	MO381008658/1 Out of stock	Accessory Bag Pos 14-16. 81-83 incl	£16.43 £13.69
