Billy Goat LB612 - LB Vacuum Main Diagram

Name: Billy Goat LB612 - LB Vacuum Main Diagram
SKU: lb612_lb_vacuum_main-group
Price: 0.61 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat LB612 - LB Vacuum Main Diagram

Description

LB612 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BG900590-04-S Out of stock	Housing Assy	£379.54 £316.28

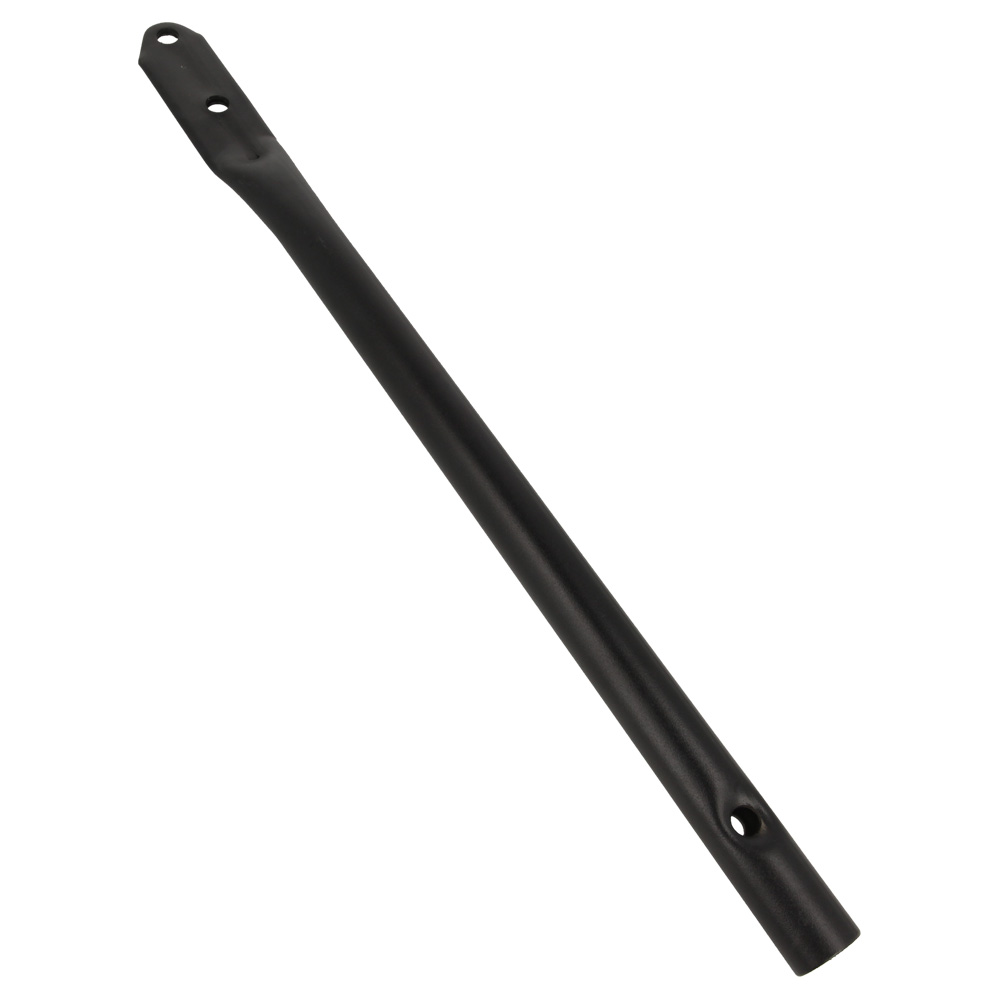

5	BG900483 Out of stock	Handle Lower	£22.10 £18.42
7	BG900817 Out of stock	Wheel Rear 10"	£64.90 £54.08
8	BG900159 Out of stock	Axle Shaft	£20.08 £16.73
9	BG8161044 Out of stock	Nut Lock 1/2 -13 Thin Ht	£0.94 £0.78
10	BG900719 Out of stock	Bag Debris	£239.42 £199.52
11	BG900816 Out of stock	Wheel Front 8"	£34.54 £28.78
12	BG900384 Out of stock	Spacer	£0.78 £0.65
13	BG900414 Out of stock	Plate- Ht Adj	£20.86 £17.38
15	BG900417 Out of stock	Arm Assy - Ht Adj	£31.74 £26.45
16	BG900459 Out of stock	Tip -Ht Adj	£3.42 £2.85
17	BG8041056 Out of stock	Screwcap 3/8-16 X 2 1/2"	£1.40 £1.17
18	BG900777 Out of stock	Handle - Upper Assy	£84.04 £70.03
19	BG900820 Out of stock	Ht Adj Assy	£93.84 £78.20
20	BG900819 Out of stock	Spacer Front Wheel	£2.94 £2.45
21	BG900146-01 In stock	Plug	£8.82 £7.35
23	BG100346 Out of stock	Label Ear/Eye Breathing	£3.58 £2.98
24	BG441152 Out of stock	Label Logo Small Frame	£4.50 £3.75
25	BG8172007 Out of stock	Washer 1/4 Sae	£0.78 £0.65
26	BG8041029 Out of stock	Screwcap 5/16-16 X 1 1/4	£0.94 £0.78
30	BG900230 Out of stock	Washer 1/2" Flat Kd Wheel Mtg	£0.94 £0.78
32	BG900456 Out of stock	Knob-Folding Handle	£5.44 £4.53
33	BG900422 Out of stock	Impeller Assy	£86.40 £72.00
35	BG5108837 Out of stock	Key-3/16 Sq X 1 1/4"	£2.96 £2.47
36	BG8177012 Out of stock	Washer Lock 3/8 S/T Med	£0.78 £0.65
37	BG900154 Out of stock	Screwcap 3/8-24 X 1" Gr 8 Torque	£2.18 £1.82
38	BG800178 Out of stock	Bag Loop	£2.80 £2.33
41	BG900466 Out of stock	Bolt Carriage 5/16-18X2 1/4"	£4.50 £3.75
43	BG8160001 Out of stock	Nut Lock 1/4 - 20 Hex Zp	£0.94 £0.78
44	BG8041006 Out of stock	Screwcap 1/4 -20 X 1"	£0.94 £0.78
45	BG8041004 Out of stock	Screwcap 1/4-20 X 3/4"	£0.94 £0.78
49	BG8160002 Out of stock	Nut Lock 5/16-18 Hex Zp	£0.94 £0.78
50	BG8172011 In stock	Washer Flat 1/2 Sae (17/32 X 1 1/16 X 3/32)	Was £1.10 £0.92 Special Price £0.73 £0.61
52	BG8041052 Out of stock	Screwcap 3/8-16 X 1 1/2"	£1.24 £1.03
55	BG8172009 Out of stock	Washer Flat 3/8 Sae (13/32 X 13/16/ X 1/16)	£1.24 £1.03
57	BG8172008 Out of stock	Washer 5/16 Sae (11/32 X 11/16 X 1/16)	£0.78 £0.65
64	BG900487 Out of stock	Bracket Axle	£9.02 £7.52
65	BG900231 Out of stock	Spacer 1/2 X 5/8	£8.22 £6.85
67	BG400424 Out of stock	Label Danger Keep Hands And Feet Away	£3.58 £2.98
71	BG8123086 Out of stock	Screw Self-Tapping 10-24 X 1/2	£1.08 £0.90
72	BG8171003 Out of stock	Washer 5/16 Flat Cut	£0.78 £0.65
73	BG810736 Out of stock	Label Flying Debris	£3.58 £2.98
