Billy Goat KV600SP - KV600SP Vacuum Main Diagram

Description

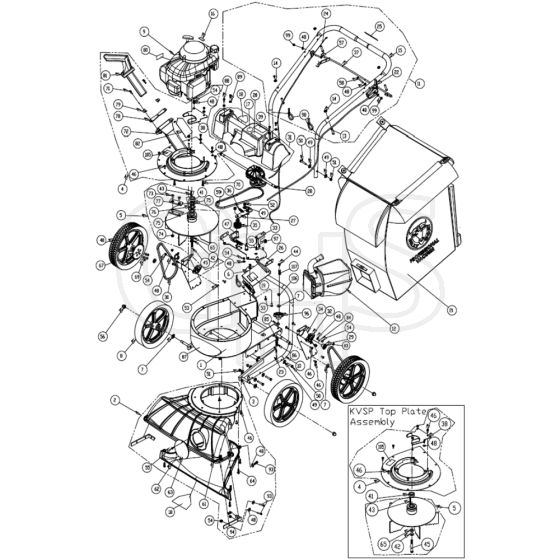

KV600SP Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BG891100-S Out of stock	Main Frame Housing Kv	£341.72 £284.77
2	BG891110-S Out of stock	Nozzle Assembly Tkv	£260.98 £217.48
3	BG891600 Out of stock	Axle Wa Kv Micro	£186.74 £155.62
4	BG891101-S Out of stock	Plate Top Wa Kvsp	£171.48 £142.90
5	BG891104-S Out of stock	Impeller Serrated 1425 Wa Kvsp	£334.10 £278.42
7	BG8172011 In stock	Washer 1/2" Sae Z/P	Was £1.10 £0.92 Special Price £0.73 £0.61
8	BG900760-S In stock	Wheel Assy 12" X 25" Tread	£99.72 £83.10
10	BG891050 Out of stock	Lower Handle Kv	£61.16 £50.97
11	BG891054-S Out of stock	Handle Upper Kvsp	£143.94 £119.95
12	BG890630 Out of stock	Quick Disconnect	£87.16 £72.63
15	BG430342 Out of stock	Grip Handle 1"X 95" Lg	£6.38 £5.32
17	BG100346 Out of stock	Label Read	£3.58 £2.98
18	BG400424 Out of stock	Label Warning Danger	£3.58 £2.98
19	BG810736 Out of stock	Label Danger Flying Debris	£3.58 £2.98
21	BG891211 Out of stock	Bag Felt W/Skirt Kv (Fb Models)	£437.88 £364.90
21	BG891132 Out of stock	Debris Bag - No Zipper KV1	£298.76 £248.97
22	BG891036 Out of stock	Cable Throttle Assy 42" W/Choke	£24.90 £20.75
23	BG891071 Out of stock	J Bolt 3/8-16 X 6"	£6.52 £5.43
24	BG891032 In stock	Cable Clutch Drive Assy 40" Kvsp	£44.44 £37.03
26	BG891106 Out of stock	Bracket Trans Mount Wa Kv	£42.78 £35.65
28	BG891020-S Out of stock	Trans Single Speed W/Diff	£228.60 £190.50
29	BG891022 Out of stock	Sprocket 8 Tooth #43 Or #65	£18.30 £15.25
30	BG891023 Out of stock	Chain #43 X 58 Pitches	£12.54 £10.45
31	BG891004-S In stock	Guard Drive Kv	£203.92 £169.93
32	BG891025-S Out of stock	Bearing 1/2" Pressed Steel Housing	£14.58 £12.15
34	BG891014 Out of stock	Plate Chain Reinforce Kv	£29.88 £24.90
35	BG840087 Out of stock	Pulley Idler 2" Od X 3/8" Id	£23.74 £19.78
36	BG800242 Out of stock	Spring Tension	£5.26 £4.38
37	BG891102 Out of stock	Bail Clutch Wa Kvsp	£32.68 £27.23
39	BG900327 Out of stock	Label Danger Guard	£3.58 £2.98
40	BG890242-S Out of stock	Wheel Assy Sp 26T Sprocket	£217.86 £181.55
42	BG8177012 Out of stock	Washer Lock 3/8 St Med	£0.78 £0.65
43	BG9201087 Out of stock	Sq Key 2125 X 187	£2.32 £1.93
44	BG8161042 Out of stock	Nut Lock 3/8-16 Thin	£0.94 £0.78
46	BG890359 In stock	Screwcap 1/4 - 20 X 5/8 Hwh	£1.40 £1.17
47	BG800888 Out of stock	Bolt Idler 3/8-16 X 1 1/2	£9.02 £7.52
48	BG8172007 Out of stock	Washer 1/4" Sae Zp	£0.78 £0.65
49	BG8171003 Out of stock	Washer 5/16 Flatwasher Z/P	£0.78 £0.65
50	BG8041031 Out of stock	Screwcap 5/16-18 X 175 Zp	£0.94 £0.78
51	BG8160002 Out of stock	Nut Lock 5/16-18	£0.94 £0.78
52	BG8160003 Out of stock	Nylon Insert Locknut 3/8-16 Unc	£0.94 £0.78
53	BG8041004 Out of stock	Screwcap 1/4-20 X 3/4"	£0.94 £0.78
54	BG8160001 Out of stock	Nylon Insert Locknut 1/4-20 Unc	£0.94 £0.78
55	BG80112110 Out of stock	Screwcap #10-14 X 3/4" Hwh Zp	£0.94 £0.78
56	BG890530 Out of stock	1/2-13 Cap Nut Np W/Patch	£4.50 £3.75
57	BG8041009 Out of stock	Screwcap 1/4-20 X 1 3/4 Hcs Zp	£0.94 £0.78
59	BG891026 Out of stock	Belt 3V315	£38.40 £32.00
61	BG891002 Out of stock	Nozzle Top Half Kv	£117.18 £97.65
62	BG891003 Out of stock	Nozzle Bottom Half Kv	£69.42 £57.85
63	BG900146-01 Out of stock	Plug Housing Kd Lb	£8.82 £7.35
64	BG891039 Out of stock	Screw Plastic 1/4-20 X 1	£1.08 £0.90
67	BG890238 Out of stock	Sprocket 65A26 26 Tooth	£19.32 £16.10
69	BG900505 Out of stock	Screw Self Tap 1/4 X 075	£1.24 £1.03
70	BG840082 Out of stock	Screw Plastite 1/4-20 X 3/4 Hwh Zp	£1.24 £1.03
83	BG350146 Out of stock	Clip 1/2"	£0.94 £0.78
84	BG510180 Out of stock	Woodruff Key 1/8 X 1/2	£1.08 £0.90
85	BG8171006 Out of stock	Washer 1/2" Fc	£0.78 £0.65
86	BG891072 Out of stock	Spring Compression	£3.26 £2.72
87	BG891046 Out of stock	Label Decal Kv/Tkv	£5.64 £4.70
88	BG510208 Out of stock	Screw Sm 1/4 X 3/4 Drill Pt	£1.48 £1.23
92	BG8024021 Out of stock	Carriage Bolt 1/4"-20 X 3/4"	£0.94 £0.78
93	BG8041006 Out of stock	Screwcap 1/4-20 X 1" Hcs Zp	£0.94 £0.78
94	BG891208 Out of stock	Kv Nozzle Bracket	£11.52 £9.60
96	BG891070 Out of stock	Knob 3/8-16 Red	£11.06 £9.22
98	BG900407 Out of stock	Ty Wrap	£0.78 £0.65
99	BG840071 Out of stock	Nut 1/4-20 Acorn	£2.66 £2.22
106	BG830176 Out of stock	Grommet Flange 1/2" Molded	£1.08 £0.90
107	BG400332 Out of stock	Spring Compression	£1.72 £1.43
