Billy Goat KD510 - Vacuum Chipper Main Diagram

Description

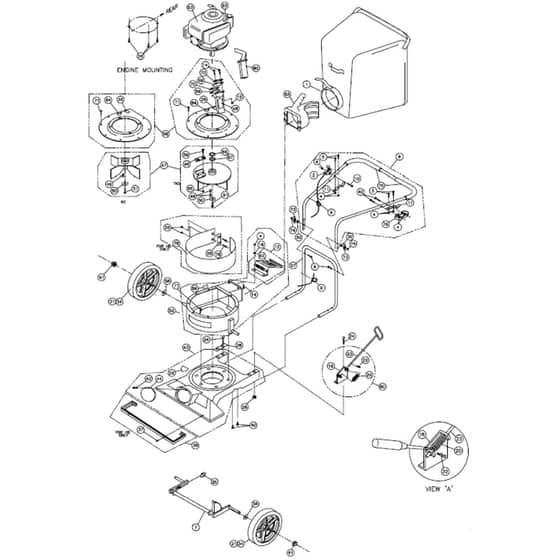

KD510 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BG890305 Out of stock	Turf Quick Debris Bag (Service)	£257.32 £214.43
2	BG850270 Out of stock	Throttle	£35.09 £29.24
4	BG8160001 Out of stock	Nut Lock (1/4 - 20 )	£0.94 £0.78
5	BG8041008 Out of stock	Screw Cap ( 1/4 - 20 X 1-1/2 Hex )	£0.94 £0.78
7	BG890389 Out of stock	Axle Height Adjust	£96.24 £80.20
8	BG900547 Out of stock	Screw Handle 5/16 - 18 X 2-1/4	£0.80 £0.67
10	BG8041009 Out of stock	Screw Cap 1/4 - 20 X 1 3/4	£0.94 £0.78
11	BG900039 Out of stock	Bar Bag Support	£36.56 £30.47
12	BG890148-S Out of stock	Door Exhaust Ass’Y	£65.36 £54.47
14	BG8024021 Out of stock	Bolt-Carriage 1/4X3/4	£0.94 £0.78
16	BG8171002 Out of stock	Washer 1/4 Fc Zp	£0.78 £0.65
18	BG900932 Out of stock	Bracket - Height Adjustment	£58.66 £48.88
20	BG900136 Out of stock	Spring	£2.48 £2.07
21	BG900760-S In stock	Tire - Only (Per Assy)	£99.72 £83.10
22	BG900471 Out of stock	Pin - Hair Cotter	£1.24 £1.03
23	BG890110 Out of stock	Rod Short Height Adjustment	£13.38 £11.15
24	BG8024054 Out of stock	Bolt - Carriage 5/16 - 18 X 4 1/2	£0.94 £0.78
26	BG8160002 Out of stock	Nut Lock 5/16 - 18 Hex	£0.94 £0.78
27	BG890346 Out of stock	Handle Lower Kd510	£63.64 £53.03
28	BG900933 Out of stock	Plate Handle Support	£5.62 £4.68
29	BG400424 Out of stock	Label Danger Cut Finger	£3.58 £2.98
30	BG8171003 Out of stock	Washer Flat Cut 5/16	£0.78 £0.65
32	BG900927 In stock	Hubcap 1/2 Washer	£1.40 £1.17
42	BG8123086 Out of stock	Screw Self Tapping 10 - 24 X 1/2	£1.08 £0.90
43	BG890391 Out of stock	Nozzle Mainframe Ass’Y	£353.86 £294.88
44	BG900146-01 In stock	Plug	£8.82 £7.35
47	BG900215-S Out of stock	Impeller Ass’Y	£268.28 £223.57
49	BG900162 Out of stock	Key	£1.24 £1.03
50	BG400502 Out of stock	Washer Lock 3/8 Twisted Tooth	£4.20 £3.50
51	BG900154 Out of stock	Screw Cap 3/8 -24 X 1	£2.18 £1.82
56	BG890408 Out of stock	Screw Cap 3/8 - 1-1/2 Taptite	£3.12 £2.60
58	BG8172011 In stock	Washer Flat 1/2 Sae	Was £1.10 £0.92 Special Price £0.73 £0.61
61	BG8161044 Out of stock	Nut Lock 1/2 Thin	£0.94 £0.78
62	BG810736 Out of stock	Label Danger Flying Material	£3.58 £2.98
68	BG890402 Out of stock	Plate Top Ass’Y	£49.42 £41.18
71	BG890359 Out of stock	Screw Cap 1/4 - 20 X 1/2 Hwh	£1.40 £1.17
73	BG890108 Out of stock	Knob Wing 5/16 - 18	£2.48 £2.07
75	BG400570 Out of stock	Grip Handle	£6.52 £5.43
83	BG890176 Out of stock	Connector Bag Quick	£87.84 £73.20
84	BG100346 Out of stock	Label Read Owner'S Manual	£3.58 £2.98
