Description

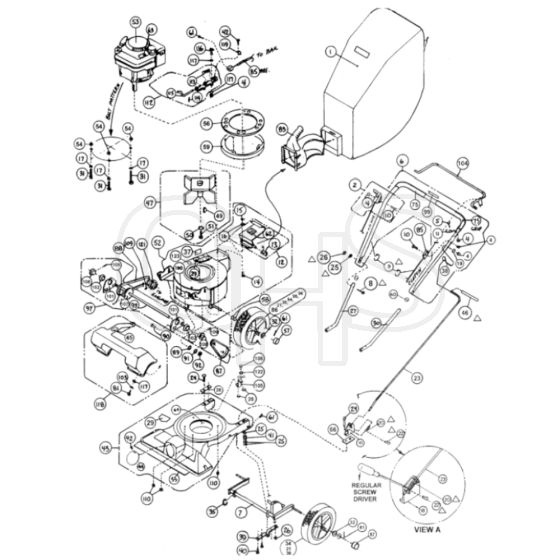

KD502SPQ Parts Diagram

Ref. Img. Part No. Details
  1 Debris Bag (Service Assy)
Debris Bag (Service Assy)
BG900803 Out of stock
Debris Bag (Service Assy)
£304.00 £253.33

  2 Throttle Assembly
Throttle Assembly
BG900343-S Out of stock
Throttle Assembly
£90.22 £75.18

  4 Nut Lock (1/4 - 20 )
Nut Lock (1/4 - 20 )
BG8160001 Out of stock
Nut Lock (1/4 - 20 )
£0.94 £0.78

  5 Screw Cap ( 1/4 - 20 X 1-1/2 Hex )
Screw Cap ( 1/4 - 20 X 1-1/2 Hex )
BG8041008 Out of stock
Screw Cap ( 1/4 - 20 X 1-1/2 Hex )
£0.94 £0.78

  10 Screw Cap 1/4 - 20 X 1 3/4
Screw Cap 1/4 - 20 X 1 3/4
BG8041009 Out of stock
Screw Cap 1/4 - 20 X 1 3/4
£0.94 £0.78

  11 Rod - Bag Loop
Rod - Bag Loop
BG800178 Out of stock
Rod - Bag Loop
£2.80 £2.33

  12 Door Exhaust Ass’Y
Door Exhaust Ass’Y
BG890148-S Out of stock
Door Exhaust Ass’Y
£65.36 £54.47

  13 Spring Door Exhaust
Spring Door Exhaust
BG890142 Out of stock
Spring Door Exhaust
£3.58 £2.98

  14 Screw Cap #10 - 24 X 5/8
Screw Cap #10 - 24 X 5/8
BG8059135 Out of stock
Screw Cap #10 - 24 X 5/8
£0.94 £0.78

  15 Nut Lock #10 Nc
Nut Lock #10 Nc
BG8164005 Out of stock
Nut Lock #10 Nc
£0.94 £0.78

  18 Bracket - Height Adjustment
Bracket - Height Adjustment
BG900932 Out of stock
Bracket - Height Adjustment
£58.66 £48.88

  21 Tire - Only (Per Assy) Treaded
Tire - Only (Per Assy) Treaded
BG900659 Out of stock
Tire - Only (Per Assy) Treaded
£37.40 £31.17

  22 Pin - Hair Cotter
Pin - Hair Cotter
BG900471 Out of stock
Pin - Hair Cotter
£1.24 £1.03

  23 Rod Ht Adj
Rod Ht Adj
BG900978 Out of stock
Rod Ht Adj
£13.54 £11.28

  24 Bolt - Carriage 5/16 - 18 X 3-1/2
Bolt - Carriage 5/16 - 18 X 3-1/2
BG8024050 Out of stock
Bolt - Carriage 5/16 - 18 X 3-1/2
£0.94 £0.78

  25 Washer - Flat 5/16 Sae
Washer - Flat 5/16 Sae
BG8172008 Out of stock
Washer - Flat 5/16 Sae
£0.78 £0.65

  26 Nut Lock 5/16 - 18 Hex
Nut Lock 5/16 - 18 Hex
BG8160002 Out of stock
Nut Lock 5/16 - 18 Hex
£0.94 £0.78

  28 Plate Handle Support
Plate Handle Support
BG900933 Out of stock
Plate Handle Support
£5.62 £4.68

  29 Label Danger Cut Finger
Label Danger Cut Finger
BG400424 Out of stock
Label Danger Cut Finger
£3.58 £2.98

  32 Washer Hub Cap 1/2 Id
Washer Hub Cap 1/2 Id
BG900927 In stock
Washer Hub Cap 1/2 Id
£1.40 £1.17

  34 Wheel Ass’Y Cast
Wheel Ass’Y Cast
BG900760-S In stock
Wheel Ass’Y Cast
£99.72 £83.10

  36 Bearing Only (Qty Per Wheel Ass’Y)
Bearing Only (Qty Per Wheel Ass’Y)
BG900498 Out of stock
Bearing Only (Qty Per Wheel Ass’Y)
£4.96 £4.13

  40 Screw Cap 1/4 - 20 X 1/2
Screw Cap 1/4 - 20 X 1/2
BG8041002 Out of stock
Screw Cap 1/4 - 20 X 1/2
£0.94 £0.78

  41 Spacer
Spacer
BG900926 Out of stock
Spacer
£0.78 £0.65

  42 Screw Self Tapping 10 - 24 X 1/2
Screw Self Tapping 10 - 24 X 1/2
BG8123086 Out of stock
Screw Self Tapping 10 - 24 X 1/2
£1.08 £0.90

  43 Nozzle Mainframe Ass’Y
Nozzle Mainframe Ass’Y
BG900966 Out of stock
Nozzle Mainframe Ass’Y
£338.16 £281.80

  44 Plug
Plug
BG900146-01 In stock
Plug
£8.82 £7.35

  46 Grip
Grip
BG900937 Out of stock
Grip
£2.18 £1.82

  49 Key Hi Pro (5/32 X 5/8)
Key Hi Pro (5/32 X 5/8)
BG900162 Out of stock
Key Hi Pro (5/32 X 5/8)
£1.24 £1.03

  50 Washer Lock 3/8 Twisted Tooth
Washer Lock 3/8 Twisted Tooth
BG400502 Out of stock
Washer Lock 3/8 Twisted Tooth
£4.20 £3.50

  51 Screw Cap 3/8 - 24 X 1 1/2 ” (Torque 50 Ft-Lbs)
Screw Cap 3/8 - 24 X 1 1/2 ” (Torque 50 Ft-Lbs)
BG900344 Out of stock
Screw Cap 3/8 - 24 X 1 1/2 ” (Torque 50 Ft-Lbs)
£2.48 £2.07

  54 Nut Lock 3/8 16
Nut Lock 3/8 16
BG8160003 Out of stock
Nut Lock 3/8 16
£0.94 £0.78

  55 Rod Bumper
Rod Bumper
BG900939 Out of stock
Rod Bumper
£16.46 £13.72

  58 Washer Flat 1/2 Sae
Washer Flat 1/2 Sae
BG8172011 In stock
Washer Flat 1/2 Sae
Was £1.10 £0.92 Special Price £0.73 £0.61

  60 Cap End 1
Cap End 1
BG890132 Out of stock
Cap End 1"
£0.94 £0.78

  62 Label Danger Flying Material
Label Danger Flying Material
BG810736 Out of stock
Label Danger Flying Material
£3.58 £2.98

  64 Guard Foam Insert
Guard Foam Insert
BG900977 Out of stock
Guard Foam Insert
£16.50 £13.75

  75 Grip Handle
Grip Handle
BG400570 Out of stock
Grip Handle
£6.52 £5.43

  81 Screw Cap 1/4 - 20 X 3/4
Screw Cap 1/4 - 20 X 3/4
BG8041004 Out of stock
Screw Cap 1/4 - 20 X 3/4
£0.94 £0.78

  83 Connector Quick
Connector Quick
BG890176 Out of stock
Connector Quick
£87.84 £73.20

  86 Wheel With Sprocket Ass’Y Cast
Wheel With Sprocket Ass’Y Cast
BG900761 Out of stock
Wheel With Sprocket Ass’Y Cast
£86.48 £72.07

  87 Chain 52 Pitch
Chain 52 Pitch
BG890239 Out of stock
Chain 52 Pitch
£18.92 £15.77

  88 Chain 40 Pitch
Chain 40 Pitch
BG900323 Out of stock
Chain 40 Pitch
£15.24 £12.70

  89 Washer Flat 5/16 (3/8 Id X 7/8 X 1/16)
Washer Flat 5/16 (3/8 Id X 7/8 X 1/16)
BG8171003 Out of stock
Washer Flat 5/16 (3/8 Id X 7/8 X 1/16)
£0.78 £0.65

  90 Bolt Carriage 5/16 -18 X 3/4
Bolt Carriage 5/16 -18 X 3/4
BG8024039 Out of stock
Bolt Carriage 5/16 -18 X 3/4
£0.94 £0.78

  91 Washer Spring Lock 5/16
Washer Spring Lock 5/16
BG8177011 Out of stock
Washer Spring Lock 5/16
£0.78 £0.65

  92 Nut Regular 5/16-18
Nut Regular 5/16-18
BG8142002 Out of stock
Nut Regular 5/16-18
£0.94 £0.78

  93 Jackshaft
Jackshaft
BG900320 Out of stock
Jackshaft
£23.76 £19.80

  94 Sprocket (Per Assembly) 26 Teeth
Sprocket (Per Assembly) 26 Teeth
BG890238 Out of stock
Sprocket (Per Assembly) 26 Teeth
£19.32 £16.10

  96 Washer Lock External Tooth
Washer Lock External Tooth
BG8181007 Out of stock
Washer Lock External Tooth
£0.78 £0.65

  100 Label-Danger Guards
Label-Danger Guards
BG900327 Out of stock
Label-Danger Guards
£3.58 £2.98

  102 Bearing Ball (With Snap Ring)
Bearing Ball (With Snap Ring)
BG900321 Out of stock
Bearing Ball (With Snap Ring)
£9.02 £7.52

  106 Screw Cap 5/16-18 X 3/4
Screw Cap 5/16-18 X 3/4
BG8041026 Out of stock
Screw Cap 5/16-18 X 3/4
£0.94 £0.78

  108 Sprocket - 8 Tooth
Sprocket - 8 Tooth
BG900302 Out of stock
Sprocket - 8 Tooth
£81.06 £67.55

  109 Roll Pin 3/16 Dia X 1 1/4 Lg
Roll Pin 3/16 Dia X 1 1/4 Lg
BG8195166 Out of stock
Roll Pin 3/16 Dia X 1 1/4 Lg
£1.06 £0.88

  112 Bracket Control Ass’Y
Bracket Control Ass’Y
BG900221 Out of stock
Bracket Control Ass’Y
£68.08 £56.73

  113 Spring
Spring
BG900136 Out of stock
Spring
£2.48 £2.07

  115 Rod Clutch
Rod Clutch
BG900208 Out of stock
Rod Clutch
£30.04 £25.03

  116 Screw Cap 1/4-20 X 1” Lg
Screw Cap 1/4-20 X 1” Lg
BG8041006 Out of stock
Screw Cap 1/4-20 X 1” Lg
£0.94 £0.78

  117 Washer 1/4” Flat
Washer 1/4” Flat
BG8171002 Out of stock
Washer 1/4” Flat
£0.78 £0.65

  121 Clutch Double Release
Clutch Double Release
BG890605 Out of stock
Clutch Double Release
£276.36 £230.30

  122 Washer Fender 5/16
Washer Fender 5/16
BG8172020 Out of stock
Washer Fender 5/16
£0.78 £0.65

  123 Label Read Owner'S Manual
Label Read Owner'S Manual
BG100346 Out of stock
Label Read Owner'S Manual
£3.58 £2.98
