Billy Goat HW651HSP - HW651HSP High Wheel Mower Main Diagram

Description

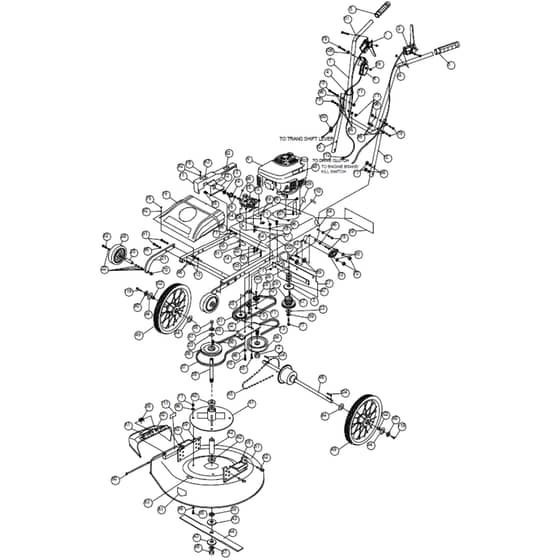

HW651HSP Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BG510263 Out of stock	Lever Drive Clutch W/Cable	£61.00 £50.83
4	BG900407 Out of stock	Ty Wrap	£0.78 £0.65
6	BG510127 Out of stock	Control Shift 3 Speed	£38.60 £32.17
16	BG350146 Out of stock	C-Clip 1/2	£0.94 £0.78
17	BG8172005 Out of stock	Washer #10 Sae	£0.78 £0.65
22	BG8172011 In stock	Washer 1/2” Zp	Was £1.10 £0.92 Special Price £0.73 £0.61
25	BG900819 Out of stock	Spacer Wheel Front	£2.94 £2.45
31	BG510138-S Out of stock	Belt 3L320	£25.68 £21.40
37	BG510139 Out of stock	Belt Blade 5L560	£85.60 £71.33
40	BG500101 Out of stock	Bearing 7/8” Sealed	£23.98 £19.98
53	BG350209 Out of stock	Bearing 3/4 Cast Flange	£38.14 £31.78
56	BG510205 Out of stock	Spring Exhaust Chute	£7.78 £6.48
61	BG400424 Out of stock	Label Opei	£3.58 £2.98
63	BG900327 Out of stock	Label Danger Guards	£3.58 £2.98
64	BG400217 Out of stock	Spring Tension	£12.54 £10.45
65	BG8024040 Out of stock	Carriage Bolt 5/16”-18X1	£0.94 £0.78
67	BG9201113 Out of stock	Key Sq 1/4" X 1"	£2.32 £1.93
69	BG8160001 Out of stock	Nut Lock 1/4-20 Hex Zp	£0.94 £0.78
70	BG8160003 Out of stock	Nut Lock 3/8-16	£0.94 £0.78
71	BG8160002 Out of stock	Nut Lock 5/16	£0.94 £0.78
73	BG8195166 Out of stock	Roll Pin 3/16 X 125	£1.06 £0.88
75	BG500114 Out of stock	Bolt Shoulder 1/2” X 1”	£8.72 £7.27
76	BG510208 Out of stock	Screw Self Tap 1/4 X 3/4”	£1.48 £1.23
78	BG8041031 Out of stock	Screw Cap 5/16”-18X1 3/4	£0.94 £0.78
82	BG8041058 Out of stock	Screwcap 3/8-16 X 3”	£1.24 £1.03
83	BG8041052 Out of stock	Screwcap 3/8-16 X 1 1/2”	£1.24 £1.03
85	BG8041028 Out of stock	Screwcap 5/16-18 X 1”	£0.94 £0.78
86	BG8024039 Out of stock	Carriage Bolt 5/16-18X3/4	£0.94 £0.78
89	BG400502 Out of stock	Twisted Washer 3/8”	£4.20 £3.50
90	BG430298 Out of stock	Twisted Washer 5/16”	£1.56 £1.30
94	BG8172015 Out of stock	Washer 3/4 Sae	£0.78 £0.65
95	BG8171004 Out of stock	Washer 3/8 Fc	£0.78 £0.65
96	BG8171003 Out of stock	Washer 5/16 Fc	£0.78 £0.65
97	BG8177013 Out of stock	Washer Lock 7/16" S/T Med	£0.78 £0.65
98	BG510180 Out of stock	Key Woodwruff 1/8 X 1/2	£1.08 £0.90
99	BG8177012 Out of stock	Washer Lock 3/8 S/T Med	£0.78 £0.65
104	BG9201087 Out of stock	Key Sq 3/16 X 2 1/8”	£2.32 £1.93
106	BG8172007 Out of stock	Washer 1/4 Sae	£0.78 £0.65
109	BG100346 Out of stock	Label Read Manual	£3.58 £2.98
111	BG810736 Out of stock	Label Flying Debris	£3.58 £2.98
113	BG8161042 Out of stock	Nut Lock 3/8-16 Thin	£0.94 £0.78
119	BG8041026 Out of stock	Screwcap 5/16" - 18 X 3/4" Hcs Zp	£0.94 £0.78
