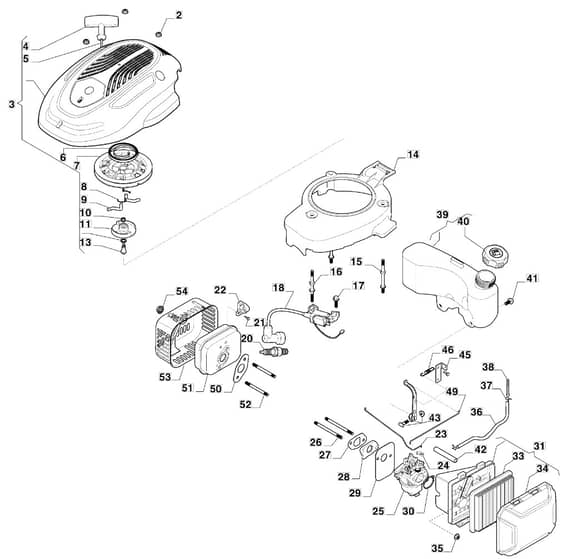

HW531 PD - 2022 - 294556043/M22 - Mountfield Rotary Mower ST200 Engine Diagram

Name: HW531 PD - 2022 - 294556043/M22 - Mountfield Rotary Mower ST200 Engine Diagram
SKU: hw531_pd_294556043_m22_st200_engine-group
Price: 0.74 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HW531 PD - 2022 - 294556043/M22 - Mountfield Rotary Mower ST200 Engine Diagram

Description

Mountfield HW531 PD Parts Diagram

Product Name - HW 531 PD

Model Year - 2022

Model Type - MP1 554 WS

Art.N - 294556043/M22

Engine Model - ST200 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
3	MO118551468/0 Out of stock	Starter Assy	£68.96 £57.47
4	MO118551619/0 Out of stock	Starter Handle	£8.57 £7.14
5	MO118550779/0 Out of stock	Starting Rope	£6.83 £5.69
6	MO118551621/0 Out of stock	Starter Spring	£9.64 £8.03
7	MO118551620/0 Out of stock	Starter Pulley	£14.72 £12.27
8	MO118551626/0 Out of stock	Spring	£2.28 £1.90
9	MO118551622/0 Out of stock	Ratchet. Starter	£2.81 £2.34
10	MO118551625/0 Out of stock	Spring	£2.94 £2.45
11	MO118551623/0 Out of stock	Cover	£7.50 £6.25
13	MO118551624/0 Out of stock	Stud	£4.02 £3.35
14	MO118551788/0 Out of stock	Blower Housing	£37.49 £31.24
17	MO112791500/0 Out of stock	Screw	£1.48 £1.23
18	MO118551474/0 Out of stock	Elettronic Coil	£49.27 £41.06
20	3381 In stock	Spark Plug (RC12YC)	£3.84 £3.20
21	MO112789000/0 Out of stock	Screw	£1.48 £1.23
22	MO118551456/0 In stock	Choke Control	£22.50 £18.75
23	MO118551459/0 Out of stock	Control Rod	£7.97 £6.64
24	MO118551352/0 Out of stock	Retainer	£3.48 £2.90
25	MO118552538/0 Out of stock	Carburettor	£70.14 £58.45
26	MO118552545/0 Out of stock	Stud Bolt	£12.66 £10.55
27	MO118552539/0 Out of stock	Gasket	£1.49 £1.24
28	MO118552540/0 Out of stock	Insulator. Carburettor	£2.40 £2.00
29	MO118550927/0 In stock	Gasket	£4.55 £3.79
30	MO118551124/0 Out of stock	Gasket	£4.55 £3.79
31	MO118551462/0 Out of stock	Air Cleaner Assy	£32.14 £26.78
33	MO118550257/0 In stock	Air Filter	£11.05 £9.21
34	MO118551463/0 Out of stock	Air Cleaner Cover	£22.90 £19.08
35	MO112292102/0 In stock	Nut	£1.61 £1.34
36	MO118551480/1 Out of stock	Fuel Pipe	£6.02 £5.02
37	MO118550918/0 Out of stock	Pipe Clip	£1.48 £1.23
38	MO118550314/0 In stock	Fuel Filter	£4.15 £3.46
39	MO118551453/0 Out of stock	Tank	£40.18 £33.48
40	MO118551455/0 Out of stock	Fuel Cap	£13.19 £10.99
41	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
42	MO118551479/0 Out of stock	Breather Fuel Pipe	£7.30 £6.08
43	MO118550933/0 Out of stock	Arm Governor	£5.89 £4.91
45	MO118552542/0 Out of stock	Bracket	£17.40 £14.50
46	MO118551458/0 Out of stock	Spring	£1.74 £1.45
49	MO118551457/0 Out of stock	Governor Link	£7.24 £6.03
50	MO118550898/0 Out of stock	Gasket. Muffler	£2.28 £1.90
51	MO118552543/0 Out of stock	Muffler	£24.55 £20.46
52	MO118552544/0 Out of stock	Stud Bolt	£8.32 £6.93
53	MO118551466/0 Out of stock	Muffler Guard	£22.63 £18.86
