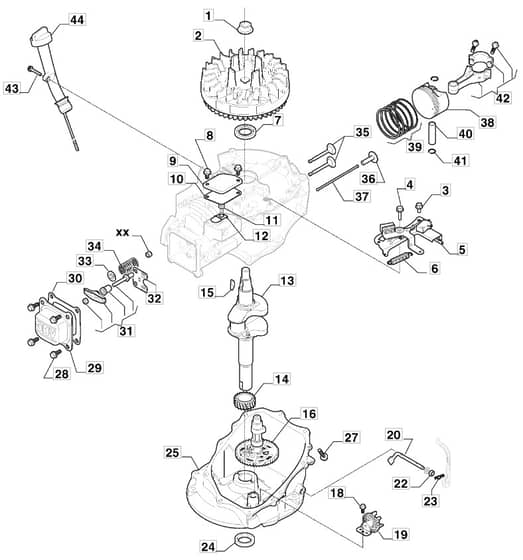

HW531 PD - 2022 - 294556043/M22 - Mountfield Rotary Mower Cylinder Diagram

Description

Mountfield HW531 PD Parts Diagram

Product Name - HW 531 PD

Model Year - 2022

Model Type - MP1 554 WS

Art.N - 294556043/M22

Engine Model - ST200 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550336/0 Out of stock	Nut	£5.82 £4.85
2	MO118551470/0 Out of stock	Flywheel Ass.Y	£74.59 £62.16
5	MO118551521/0 Out of stock	Flywheel Brake.Stop Switch Assy	£36.56 £30.47
6	MO118551522/0 Out of stock	Spring	£2.30 £1.92
7	MO118550300/0 Out of stock	Oil Seal	£6.97 £5.81
8	MO112735699/0 Out of stock	Screw	£1.36 £1.13
9	MO118552526/0 Out of stock	Cover	£6.31 £5.26
10	MO118552527/0 Out of stock	Gasket	£3.80 £3.17
11	MO112790500/0 Out of stock	Screw	£1.90 £1.58
12	MO118552516/0 Out of stock	Plate	£6.23 £5.19
13	MO118552535/0 Out of stock	Crankshaft	£128.75 £107.29
14	MO118552533/0 Out of stock	Bevel Gear	£11.96 £9.97
15	MO118550288/0 Out of stock	Woodruff Key	£5.96 £4.97
16	MO118551448/0 Out of stock	Camshaft Assy	£35.21 £29.34
18	MO112789000/0 Out of stock	Screw	£1.49 £1.24
19	MO118551460/0 Out of stock	Speed Governor Assy	£15.96 £13.30
20	MO118552541/0 Out of stock	Shaft. Governor Arm	£3.05 £2.54
24	MO118550379/0 Out of stock	Oil Seal	£6.50 £5.42
25	MO118552520/0 Out of stock	Crankcase	£115.13 £95.94
26	MO118551117/0 Out of stock	Gasket	£7.58 £6.32
27	MO118551535/0 In stock	Bolt	£2.17 £1.81
28	MO118551276/0 Out of stock	Bolt	£3.25 £2.71
29	MO118552528/0 Out of stock	Cover Comp. Head	£8.08 £6.73
30	MO118550892/0 Out of stock	Packing Head Cover	£3.12 £2.60
31	MO118550893/0 Out of stock	Valve Arm Set	£12.66 £10.55
32	MO118552536/0 Out of stock	Plate	£3.35 £2.79
35	MO118550910/0 Out of stock	Valve Assy. Intake + Exhaust	£20.72 £17.27
36	MO118550291/0 Out of stock	Valve Lifter Assy	£9.35 £7.79
38	MO118552529/0 Out of stock	Piston Ass.Y	£42.60 £35.50
39	MO118552530/0 Out of stock	Piston. Ring Set	£17.14 £14.28
40	MO118550915/0 Out of stock	Piston Pin	£5.15 £4.29
41	MO118550914/0 Out of stock	Washer. Piston Pin	£1.49 £1.24
42	MO118552532/0 Out of stock	Connecting Rod Assy	£23.06 £19.22
43	MO112791500/0 Out of stock	Screw	£1.49 £1.24
44	MO118551444/0 Out of stock	Oil Dipstick	£12.19 £10.16
