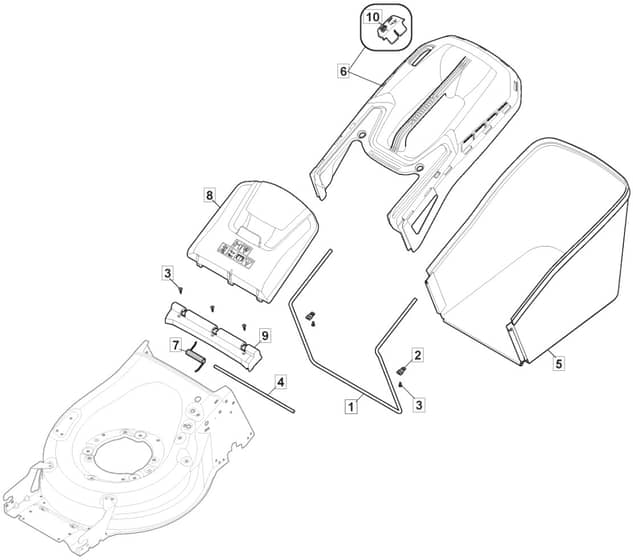

HW531 PD - 2016-2018 - 294556843/M16 - Mountfield Rotary Mower Grass Bag Diagram

Description

Mountfield HW531 PD Parts Diagram

Product Name - HW 531 PD

Model Year - 2016-2018

Model Type - MP1 554 WSQ

Art.N - 294556843/M16

Engine Model - ST55

Be the first to review this product

0 product questions

	Part No.	Details
1	MO181006411/1 Out of stock	Fabric Box Frame	£12.48 £10.40
2	MO322557177/0 Out of stock	Plate	£1.66 £1.38
3	MO112728697/0 In stock	Screw	£1.48 £1.23
4	MO122517884/0 Out of stock	Pin	£4.82 £4.02
5	MO181102349/0 Out of stock	Cancas Grasscatcher Black without Logo	£39.47 £32.89
6	MO381486039/0 Out of stock	Box. Upper Side Black Black with Grey Indicator	£26.74 £22.28
7	MO122450479/0 Out of stock	Spring	£3.22 £2.68
8	MO322600308/0 Out of stock	Stone Guard. Black	£13.37 £11.14
9	MO322109569/0 Out of stock	Black Stone Guard Support	£3.70 £3.08
10	MO322486424/0 Out of stock	Grasscatcher Full Indicator [Grey]	£1.91 £1.59
