HW514 PD - 2010-2011 - 299537043/M10 - Mountfield Rotary Mower Height Adjusting Diagram

Name: HW514 PD - 2010-2011 - 299537043/M10 - Mountfield Rotary Mower Height Adjusting Diagram
SKU: hw514_pd_299537043_m10_height_adjusting-group
Price: 1.13 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HW514 PD - 2010-2011 - 299537043/M10 - Mountfield Rotary Mower Height Adjusting Diagram

Description

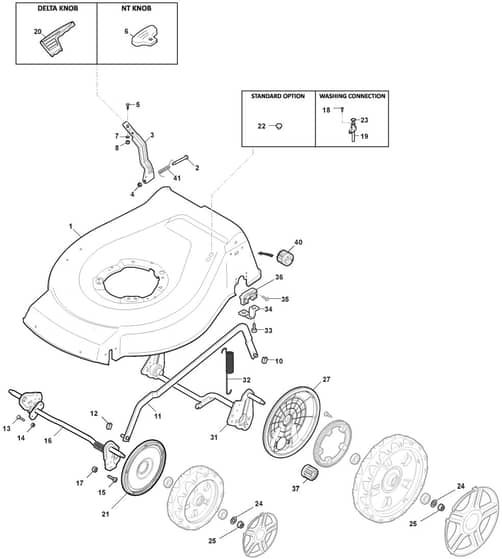

Mountfield HW514 PD Parts Diagram

Product Name - HW 514 PD

Model Year - 2010-2011

Model Type - NTL 534 W TR 4S

Art.N - 299537043/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004540/0 Out of stock	Red Deck From 01-9-2011	£189.62 £158.02
1	MO381003909/0 Out of stock	Red Deck To 31-August-2011	£222.20 £185.17
2	MO122534131/0 Out of stock	Pin	£1.49 £1.24
3	MO381003418/0 Out of stock	Lever. Height Adjustment Galvanized - White	£6.36 £5.30
5	MO112788512/0 Out of stock	Screw	£1.49 £1.24
6	MO322394503/0 Out of stock	Knob NT Knob	£1.75 £1.46
7	MO112521310/0 Out of stock	Washer	£1.36 £1.13
8	MO112150000/0 Out of stock	Nut	£1.36 £1.13
11	MO381002038/0 Out of stock	Rod	£36.56 £30.47
12	MO112436050/0 In stock	Plate	£1.75 £1.46
13	MO112727803/0 Out of stock	Screw	£1.49 £1.24
15	MO112727801/0 Out of stock	Screw	£1.49 £1.24
16	MO381302923/0 Out of stock	Front Wheel Axle	£37.93 £31.61
17	MO112154510/0 In stock	Nut	£1.49 £1.24
18	MO112728450/0 In stock	Screw From 01-9-2011	£1.49 £1.24
19	MO322034002/0 Out of stock	Washing Connection From 01-9-2011	£1.63 £1.36
20	MO322394522/0 Out of stock	Knob Delta Knob	£8.06 £6.72
21	MO322600145/0 Out of stock	Protection. Wheel As Optional	£1.63 £1.36
22	MO322820077/1 Out of stock	Cap	£1.49 £1.24
23	MO119035000/0 Out of stock	Or Ring	£4.87 £4.06
24	MO112521350/0 In stock	Washer	£1.49 £1.24
25	MO112155000/0 In stock	Nut	£1.49 £1.24
27	MO322600208/0 Out of stock	Protection. Wheel	£4.20 £3.50
31	MO381302837/1 Out of stock	Axle	£56.88 £47.40
32	MO122450460/0 Out of stock	Spring	£4.48 £3.73
34	MO322545152/0 Out of stock	Plate	£1.49 £1.24
35	MO112728697/0 In stock	Screw	£1.49 £1.24
36	MO322785304/1 Out of stock	Support	£2.17 £1.81
37	MO122570134/0 In stock	Left Pinion	£7.24 £6.03
40	MO122570133/0 In stock	Right Pinion	£7.24 £6.03
41	MO122446192/0 Out of stock	Spring	£2.04 £1.70
