HW511 PD ES - 2010 - 299532543/M10 - Mountfield Rotary Mower Transmission Diagram

Description

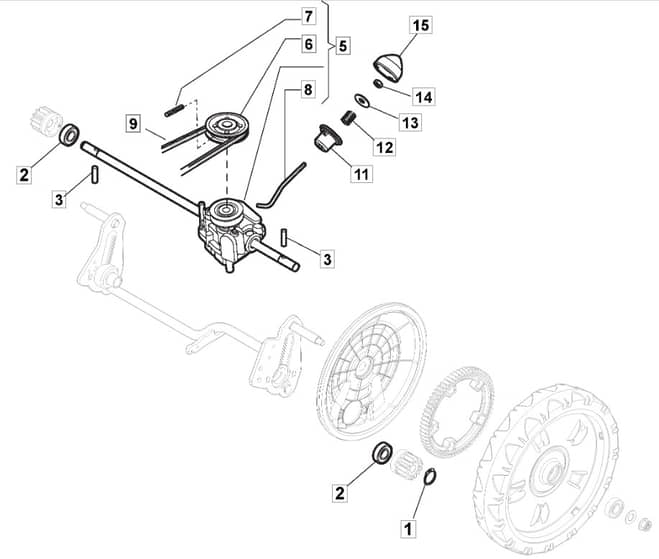

Mountfield HW511 PD ES Parts Diagram

Product Name - HW 511 PD ES

Model Year - 2010

Model Type - NTL 534 W TR/E

Art.N - 299532543/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112608600/0 In stock	Seeger	£1.49 £1.24
2	MO119216035/0 In stock	Bearing	£3.38 £2.82
3	MO122753000/0 In stock	Pin	£1.49 £1.24
5	MO181003076/1 Out of stock	Gear Box From 01-9-2012	£116.48 £97.07
5	MO181003092/0 Out of stock	Gear Box To 31-8-2012	£63.96 £53.30
6	MO122601909/0 In stock	Pulley	£5.42 £4.52
7	MO112645700/0 Out of stock	Elastic Pin	£1.49 £1.24
8	MO122033283/0 In stock	Adjustment Rod	£4.48 £3.73
9	MO135063902/1 In stock	Belt	£9.23 £7.69
9	MO1111-9124-01 Out of stock	Drive Belt Stiga Packed into 135063902.1	£12.30 £10.25
11	MO122041957/1 Out of stock	Bushing	£1.49 £1.24
12	MO122450063/0 Out of stock	Spring	£1.49 £1.24
13	MO322680009/0 Out of stock	Washer	£1.75 £1.46
14	MO112154510/0 In stock	Nut	£1.49 £1.24
15	MO122110230/0 In stock	Hub Cover	£1.49 £1.24
