HW511 PD 4 in 1 - 2013-2014 - 295536043/M12 - Mountfield Rotary Mower WBE0701 Cylinder Diagram

Description

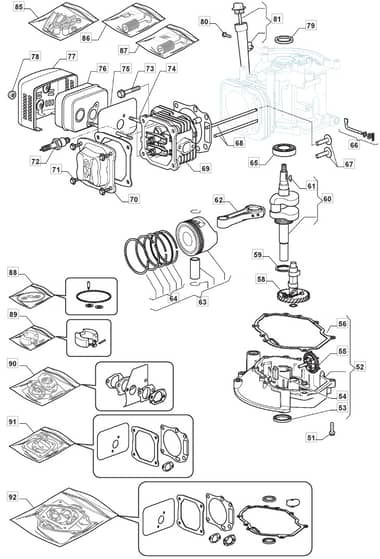

Mountfield HW511 PD 4 in 1 Parts Diagram

Product Name - HW 511 PD 4 in 1

Model Year - 2013-2014

Model Type - CRC 534 WS

Art.N - 295536043/M12

Be the first to review this product

0 product questions

	Part No.	Details
52	MO118550383/0 Out of stock	Crankcase Cover Assy	£105.12 £87.60
53	MO118550379/0 Out of stock	Oil Seal	£6.43 £5.36
55	MO118550312/1 Out of stock	Speed Governor Assy	£11.52 £9.60
56	MO118550380/1 In stock	Crankcase Gasket	£15.26 £12.72
58	MO118550271/0 Out of stock	Camshaft Assy	£34.68 £28.90
59	MO118550283/0 Out of stock	Washer	£3.22 £2.68
60	MO118550281/0 Out of stock	Crankshaft	£108.47 £90.39
61	MO118550288/0 Out of stock	Woodruff Key	£5.89 £4.91
62	MO118550284/0 Out of stock	Connecting Rod Assy	£37.49 £31.24
63	MO118550278/0 Out of stock	Piston Assy	£48.07 £40.06
64	MO118550286/0 Out of stock	Piston. Ring Set	£24.77 £20.64
65	MO118550280/0 Out of stock	Ball Bearing	£22.22 £18.52
66	MO118550308/0 Out of stock	Shaft. Governor Arm Assy	£9.84 £8.20
67	MO118550291/0 Out of stock	Valve Lifter Assy	£9.24 £7.70
69	MO118550244/0 Out of stock	Cylinder Head Assy	£120.52 £100.43
70	MO118550296/1 Out of stock	Cover Comp. Head	£13.93 £11.61
71	MO112791213/1 Out of stock	Screw	£1.48 £1.23
72	3381 In stock	Spark Plug	£3.84 £3.20
73	MO118550297/0 In stock	Screw	Was £6.02 £5.02 Special Price £3.73 £3.11
74	MO118550298/0 Out of stock	Stud Bolt	£6.43 £5.36
75	MO118550270/0 Out of stock	Muffler Gasket	£11.52 £9.60
76	MO118550269/0 Out of stock	Muffler	£33.48 £27.90
77	MO118550268/1 Out of stock	Muffler Guard	£38.83 £32.36
78	MO112292102/0 Out of stock	Nut	£1.61 £1.34
79	MO118550300/0 Out of stock	Oil Seal	£6.90 £5.75
80	MO112674550/0 Out of stock	Screw	£1.48 £1.23
81	MO118550311/2 Out of stock	Oil Filler Assy	£7.50 £6.25
85	MO118550273/0 Out of stock	Valve Arm Set	£13.13 £10.94
86	MO118550294/0 Out of stock	Exhaust Valve Assy	£30.80 £25.67
87	MO118550292/0 Out of stock	Intake Valve Assy	£23.57 £19.64
88	MO118550389/0 In stock	Kit Repair	£9.17 £7.64
89	MO118550388/0 Out of stock	Kit Repair. Carburettor	£13.93 £11.61
90	MO118550743/0 Out of stock	Gasket Carburettor Assy	£16.61 £13.84
91	MO118550406/0 Out of stock	Cylinder Head Gasket Set	£25.57 £21.31
92	MO118550740/0 Out of stock	Engine Gasket Set (Wbe0701)	£40.18 £33.48
