HW510 PD - 2010-2011 - 299536823/M10 - Mountfield Rotary Mower Upper Handle Diagram

Description

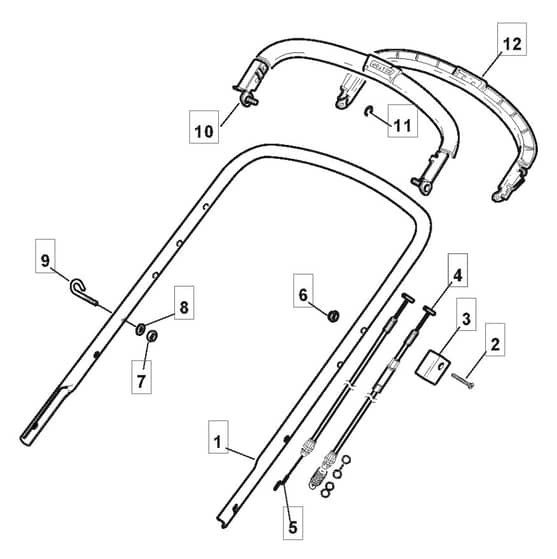

Mountfield HW510 PD Parts Diagram

Product Name - HW 510 PD

Model Year - 2010-2011

Model Type - NTL 534 W TRQ

Art.N - 299536823/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006803/0 Out of stock	Upper Handle	£38.20 £31.83
2	MO112727787/0 Out of stock	Screw	£1.74 £1.45
3	MO322551685/0 In stock	Cable Holder	£7.13 £5.94
4	MO381030055/0 In stock	Cable Rear Drive	£20.36 £16.97
5	MO181030056/1 In stock	Cable. Thread Engine Brake	£11.21 £9.34
7	MO112154510/0 In stock	Nut	£1.48 £1.23
8	MO112521330/0 Out of stock	Washer	£1.48 £1.23
9	MO122430313/0 In stock	Guide Spring	£3.74 £3.12
10	MO381003330/0 Out of stock	Lever. Engine Brake	£63.66 £53.05
11	MO112000930/0 In stock	Benzing Ring	£1.48 £1.23
12	MO381003297/1 In stock	Drive Control Lever	£20.75 £17.29
