HW460 PD - 2010 - 299486823/AXL - Mountfield Rotary Mower Lower Handle Diagram

Name: HW460 PD - 2010 - 299486823/AXL - Mountfield Rotary Mower Lower Handle Diagram
SKU: hw460_pd_299486823_axl_lower_handle-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HW460 PD - 2010 - 299486823/AXL - Mountfield Rotary Mower Lower Handle Diagram

Description

Mountfield HW460 PD Parts Diagram

Product Name - HW 460 PD

Model Year - 2010

Model Type - NTL 484 W TRQ

Art.N - 299486823/AXL

Be the first to review this product

0 product questions

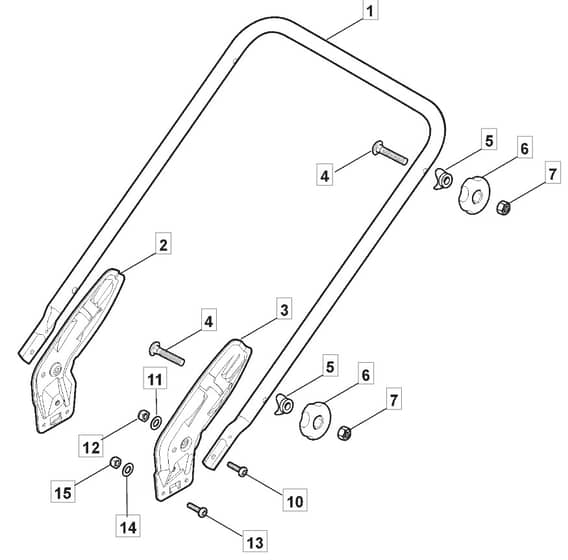

	Part No.	Details
1	MO381006889/0 Out of stock	Handle Lower Part	£23.04 £19.20
3	MO381005127/0 Out of stock	Left Bracket	£11.58 £9.65
4	MO112819121/0 In stock	Screw	£1.87 £1.56
5	MO122680006/1 In stock	Washer	£1.74 £1.45
6	MO122399900/0 In stock	Black Knob	£1.48 £1.23
7	MO112293200/0 In stock	Nut	£1.48 £1.23
10	MO112760605/0 In stock	Screw	£3.22 £2.68
11	MO112521350/0 In stock	Washer	£1.48 £1.23
12	MO112155000/0 In stock	Nut	£1.48 £1.23
13	MO112727803/0 Out of stock	Screw	£1.48 £1.23
14	MO112523040/0 In stock	Washer	£1.48 £1.23
15	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.48 £1.23
