Husqvarna Zth6125 Koa - Chassis & Frame

Husqvarna Zth6125 Koa - Chassis & Frame

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Zth6125 Koa - Chassis & Frame

Husqvarna Zth6125 Koa - Chassis & Frame

Description

Husqvarna Zth6125 Koa

Model Year - 2006-04

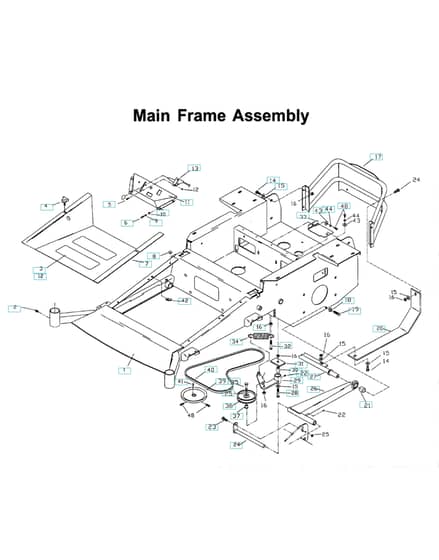

Chassis & Frame - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	2		HV539 10 14-74 Out of stock	Nipple		£6.96 £5.80
	6		HV539 99 03-62 Out of stock	Screw		£2.40 £2.00
	8		HV539 10 25-87 Out of stock	Absorber		£7.76 £6.47
	12		HV539 97 69-77 Out of stock	Nut		£1.66 £1.38
	13		HV539 10 27-32 Out of stock	Throttle		£65.34 £54.45
	15		HV539 99 05-17 Out of stock	Washer		£3.67 £3.06
	16		HV539 99 05-46 Out of stock	Nut		£2.78 £2.32
	18		HV539 99 02-47 Out of stock	Washer		£2.93 £2.44
	22		HV539 97 69-98 Out of stock	Nipple		£5.66 £4.72
	23		HV539 97 69-34 Out of stock	Screw		£3.43 £2.86
	25		HV539 99 01-84 Out of stock	Nut		£2.30 £1.92
	28		HV539 10 34-33 Out of stock	Screw		£10.26 £8.55
	30		HV539 10 34-27 Out of stock	Bushing		£23.32 £19.43
	32		HV539 99 06-55 Out of stock	Screw		£6.31 £5.26
	34		HV539 10 32-56 Out of stock	Spring		£23.26 £19.38
	36		HV539 97 66-88 Out of stock	Pulley		£59.03 £49.19
	39		HV539 10 11-76 Out of stock	Pulley		£91.34 £76.12
	44		HV539 99 01-87 Out of stock	Washer		£2.46 £2.05
	48		HV539 99 02-09 Out of stock	Screw		£3.37 £2.81

Description

Husqvarna Zth6125 Koa

Model Year - 2006-04

Chassis & Frame - Parts Diagram
