Husqvarna Zth5223Koa - 72"/183cm Cutting Deck

Husqvarna Zth5223Koa - 72"/183cm Cutting Deck
Husqvarna Zth5223Koa - 72"/183cm Cutting Deck

Description

Husqvarna Zth5223Koa

Model Year - 2006-04

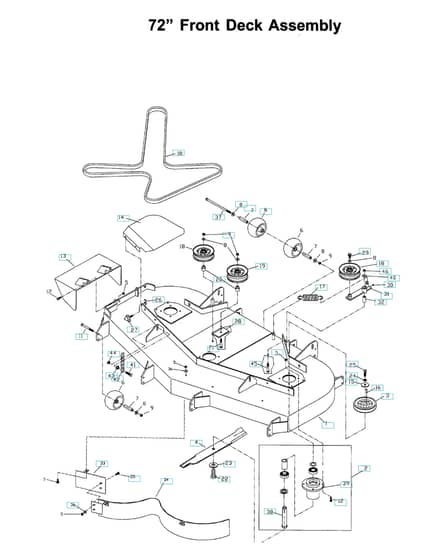

72"/183cm Cutting Deck - Parts Diagram

Ref. Img. Part No. Details
  -1 Repair Kit
Repair Kit
HV539 10 74-06 Out of stock
Repair Kit
£124.07 £103.39

  3 Pulley
Pulley
HV539 10 54-85 Out of stock
Pulley
£109.98 £91.65

  4 Blade
Blade
HV539 10 54-76 Out of stock
Blade
£59.56 £49.63

  5 Nut
Nut
HV539 99 01-84 Out of stock
Nut
£2.30 £1.92

  6 Wheel
Wheel
HV539 10 26-43 Out of stock
Wheel
£27.38 £22.82

  7 Bushing
Bushing
HV539 10 26-98 Out of stock
Bushing
£30.58 £25.48

  8 Washer
Washer
HV539 99 05-17 Out of stock
Washer
£3.67 £3.06

  9 Nut
Nut
HV539 99 05-46 Out of stock
Nut
£2.78 £2.32

  11 Screw
Screw
HV539 10 27-54 Out of stock
Screw
£7.94 £6.62

  12 Screw
Screw
HV539 99 06-27 Out of stock
Screw
£4.70 £3.92

  15 Washer
Washer
HV539 10 65-04 Out of stock
Washer
£6.10 £5.08

  16 Key
Key
HV539 10 19-95 Out of stock
Key
£4.42 £3.68

  17 Spring
Spring
HV539 10 51-92 Out of stock
Spring
£31.68 £26.40

  18 Pulley
Pulley
HV539 10 32-57 Out of stock
Pulley
£105.72 £88.10

  19 Pulley
Pulley
HV539 10 32-58 Out of stock
Pulley
£112.48 £93.73

  20 Bushing
Bushing
HV539 10 32-95 Out of stock
Bushing
£31.68 £26.40

  21 Screw
Screw
HV539 10 13-41 Out of stock
Screw
£7.52 £6.27

  22 Bolt
Bolt
HV539 10 56-33 Out of stock
Bolt
£11.08 £9.23

  24 Washer
Washer
HV539 99 02-47 Out of stock
Washer
£2.93 £2.44

  25 Screw
Screw
HV539 10 01-41 Out of stock
Screw
£6.96 £5.80

  29 Screw
Screw
HV539 99 05-82 Out of stock
Screw
£6.25 £5.21

  30 Nipple
Nipple
HV539 97 69-98 Out of stock
Nipple
£5.66 £4.72

  31 Lever
Lever
HV539 10 32-30 Out of stock
Lever
£114.85 £95.71

  32 Bushing
Bushing
HV539 10 34-27 Out of stock
Bushing
£23.32 £19.43

  37 Bolt
Bolt
HV539 10 54-22 Out of stock
Bolt
£10.10 £8.42

  38 Spindle
Spindle
HV539 10 55-01 Out of stock
Spindle
£76.98 £64.15

  39 Bearing Housing
Bearing Housing
HV539 10 48-52 Out of stock
Bearing Housing
£101.89 £84.91

  40 Washer
Washer
HV539 99 05-50 Out of stock
Washer
£4.66 £3.88

  44 Nut
Nut
HV539 99 08-39 Out of stock
Nut
£3.85 £3.21

  45 Screw
Screw
HV539 10 34-33 Out of stock
Screw
£10.26 £8.55

  46 Nut
Nut
HV539 10 13-31 Out of stock
Nut
£5.40 £4.50


Description

Husqvarna Zth5223Koa

Model Year - 2006-04

72"/183cm Cutting Deck - Parts Diagram
