Husqvarna Yth2748 - Steering

Name: Husqvarna Yth2748 - Steering
SKU: yth2748_2004_12_steering-group
Price: 0.80 GBP
Availability: InStock

Description

Husqvarna Yth2748

Model Year - 2004-12

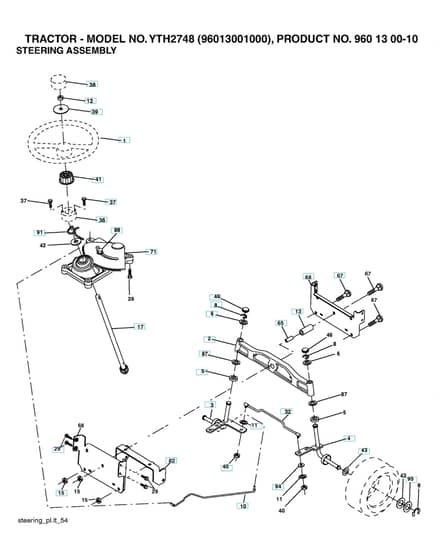

Steering - Parts Diagram

	Part No.	Details
3	HV596 87 39-01	Spindle	Out of stock	£64.38 £53.65
4	HV532 16 98-39	Spindle	Out of stock	£33.83 £28.19
6	HV532 12 17-48	Washer	Out of stock	£5.17 £4.31
8	HV812 00 00-29	Retainer Ring	In stock	£0.96 £0.80
10	HV532 17 51-21	Rod	Out of stock	£62.52 £52.10
11	HV810 04 06-00	Washer	Out of stock	£2.52 £2.10
13	HV532 13 65-18	Pipe	Out of stock	£5.82 £4.85
29	HV817 00 06-12	Screw	Out of stock	£4.87 £4.06
32	HV532 18 05-80	Tie Rod	Out of stock	£108.48 £90.40
37	HV532 15 29-27	Screw	Out of stock	£2.12 £1.77
38	HV532 19 36-52	Hub	Out of stock	£24.26 £20.22
43	HV532 12 17-49	Washer	Out of stock	£2.78 £2.32
67	HV872 11 06-18	Bolt	Out of stock	£6.19 £5.16
68	HV532 16 98-27	Shaft	Out of stock	£39.22 £32.68
71	HV531 16 78-01	Steering Gear	Out of stock	£106.08 £88.40
87	HV532 17 39-66	Washer	Out of stock	£6.95 £5.79
88	HV532 17 51-18	Bolt	Out of stock	£6.43 £5.36
91	HV532 17 55-53	Spring	Out of stock	£3.72 £3.10
95	HV532 18 89-67	Washer	Out of stock	£4.34 £3.62
