Husqvarna Yth23V48 - Mower Deck & Cutting Deck

Name: Husqvarna Yth23V48 - Mower Deck & Cutting Deck
SKU: yth23v48_mower_deck_cutting_deck-group
Price: 1.05 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Yth23V48 - Mower Deck & Cutting Deck

Description

Husqvarna Yth23V48

Model Year -

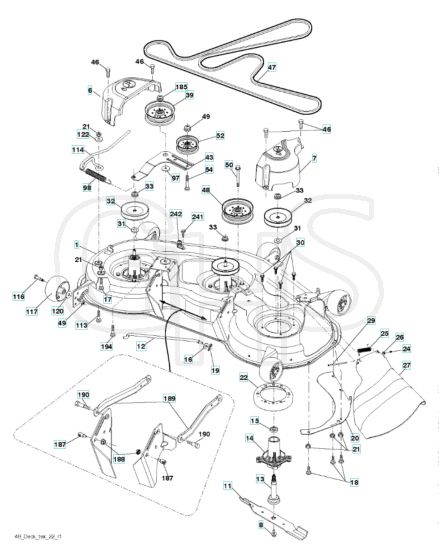

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
8	HV532 19 30-03 In stock	Screw	£15.37 £12.81
11	HV532 18 00-54 Out of stock	Blade	£22.84 £19.03
12	HV532 40 48-51 Out of stock	Rod	£17.02 £14.18
13	HV532 18 72-91 In stock	Shaft	£53.78 £44.82
15	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
17	HV872 11 05-05 Out of stock	Bolt	£2.72 £2.27
18	HV596 13 64-01 Out of stock	Bolt	£3.16 £2.63
19	HV532 19 42-08 Out of stock	Pin	£1.26 £1.05
20	HV532 17 43-78 Out of stock	Baffle	£32.57 £27.14
22	HV531 16 77-01 Out of stock	Stripper. Mandrel.Black	£12.86 £10.72
24	HV532 10 53-04 Out of stock	Hub Cap	£2.87 £2.39
26	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
29	HV532 13 14-91 In stock	Shaft	£13.98 £11.65
31	HV532 18 76-90 In stock	Washer	£2.96 £2.47
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
47	HV593 77 34-10 Out of stock	Belt	£113.04 £94.20
97	HV532 17 85-15 In stock	Washer	£7.02 £5.85
98	HV532 19 61-05 Out of stock	Spring	£19.00 £15.83
113	HV872 11 05-08 Out of stock	Bolt	£2.96 £2.47
117	HV532 17 48-73 In stock	Wheel	£16.66 £13.88
185	HV873 90 07-00 Out of stock	Nut	£4.14 £3.45
187	HV532 19 51-61 Out of stock	Stud	£2.38 £1.98
188	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
189	HV532 19 51-85 Out of stock	Arm	£27.11 £22.59
190	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
194	HV874 49 07-36 Out of stock	Bolt	£7.12 £5.93
241	HV532 15 29-27 Out of stock	Screw	£2.08 £1.73
242	HV532 41 55-98 Out of stock	Hose Coupling	£5.04 £4.20
