Husqvarna Yth22V42Ls - Electrical

Husqvarna Yth22V42Ls - Electrical

Description

Husqvarna Yth22V42Ls

Model Year -

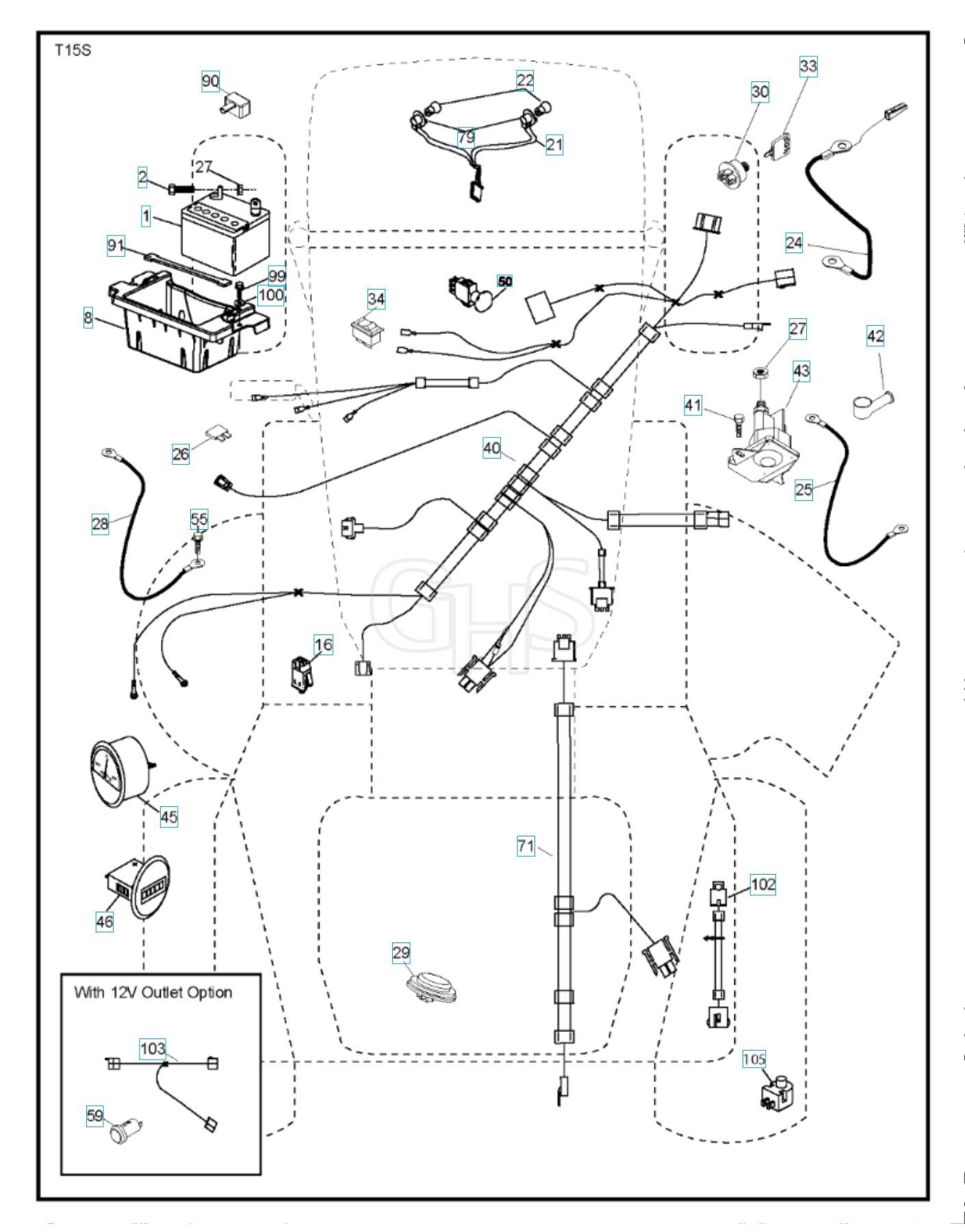

Electrical - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	2		HV874 76 04-12 Out of stock	Bolt		£2.12 £1.77
	16		HV532 17 61-38 Out of stock	Micro Switch		£15.20 £12.67
	21		HV532 40 02-52 Out of stock	Harness		£23.03 £19.19
	22		HV532 00 41-52 Out of stock	Bulb		£4.04 £3.37
	26		HV532 17 51-58 Out of stock	Fuse		£4.78 £3.98
	28		HV532 14 54-91 Out of stock	Cable		£14.05 £11.71
	29		HV532 40 15-45 Out of stock	Switch		£19.75 £16.46
	30		HV532 19 33-50 Out of stock	Ignition Module		£26.92 £22.43
	33		HV532 41 19-33 Out of stock	Key		£8.80 £7.33
	34		HV532 11 07-12 Out of stock	Switch		£13.94 £11.62
	46		HV532 42 52-71 Out of stock	Gauge		£91.20 £76.00
	90		HV532 43 53-95 Out of stock	Terminal Cover		£5.30 £4.42
	91		HV532 19 02-70 Out of stock	Strap Battery Mount Fro		£3.13 £2.61
	99		HV817 67 04-12 Out of stock	Screw		£4.42 £3.68
	100		HV819 09 14-16 Out of stock	Washer		£2.60 £2.17
	105		HV532 40 75-68 Out of stock	Switch		£17.03 £14.19

Description

Husqvarna Yth22V42Ls

Model Year -

Electrical - Parts Diagram
