Husqvarna Yth2242 - Mower Deck & Cutting Deck

Description

Husqvarna Yth2242

Model Year - 2010-05

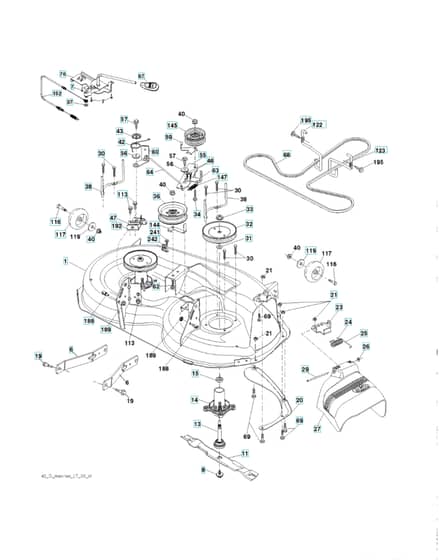

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 42 27-19 Out of stock	Blade	£29.16 £24.30
0	HV532 13 41-49 In stock	Ride On Blade	£27.25 £22.71
1	HV532 13 97-75 In stock	Ride On Blade	£27.44 £22.87
2	HV532 19 28-70 Out of stock	Spindle"Includes Housing. Shaft Assembly. And Bearing Only - Pulley/Nut/Washer And Blade Bolt/Washers Not Included"	£124.66 £103.88
6	HV529 84 64-01 In stock	Arm	Was £31.64 £26.37 Special Price £21.52 £17.93
7	HV532 41 63-58 Out of stock	Screw	£1.63 £1.36
8	HV532 19 30-03 Out of stock	Screw	£15.37 £12.81
11	HV532 13 89-71 Out of stock	Blade	£27.13 £22.61
13	HV532 19 28-72 Out of stock	Shaft Assy	£153.76 £128.13
15	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
19	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
20	HV532 15 97-70 Out of stock	Rail	£22.40 £18.67
23	HV532 19 25-57 Out of stock	Hinge	£10.96 £9.13
24	HV532 10 53-04 Out of stock	Hub Cap	£2.87 £2.39
25	HV532 19 70-26 Out of stock	Torsion Spring	£10.68 £8.90
26	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
27	HV532 40 30-04 Out of stock	Shield	£48.02 £40.02
29	HV532 13 14-91 In stock	Shaft	£13.98 £11.65
31	HV532 18 76-90 In stock	Washer	£2.96 £2.47
38	HV589 67 61-03 Out of stock	Keeper	£11.86 £9.88
42	HV532 19 84-10 Out of stock	Spring	£4.15 £3.46
43	HV532 19 72-56 Out of stock	Spring	£4.03 £3.36
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
47	HV532 19 72-50 Out of stock	Bracket	£7.28 £6.07
55	HV531 16 94-01 In stock	Arm	£15.12 £12.60
56	HV532 19 90-92 Out of stock	Spacer	£6.66 £5.55
57	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
62	HV872 11 06-16 Out of stock	Bolt	£5.75 £4.79
64	HV532 19 99-18 Out of stock	Link Brake	£8.51 £7.09
67	HV532 40 30-12 Out of stock	Handle	£10.99 £9.16
69	HV596 13 64-01 Out of stock	Bolt	£3.16 £2.63
70	HV532 40 65-63 Out of stock	Clutch	£55.20 £46.00
113	HV817 00 05-10 Out of stock	Bolt	£2.96 £2.47
117	HV532 17 48-73 In stock	Wheel	£16.66 £13.88
122	HV531 16 95-01 Out of stock	Belt Guidelh	£18.25 £15.21
123	HV531 16 97-01 Out of stock	Belt Guiderh	£12.98 £10.82
147	HV532 40 19-71 Out of stock	Spring	£4.56 £3.80
152	HV532 43 51-10 Out of stock	Cable	£45.60 £38.00
188	HV532 19 51-61 Out of stock	Stud	£2.38 £1.98
189	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
195	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
241	HV532 15 29-27 Out of stock	Screw	£2.08 £1.73
242	HV532 41 55-98 Out of stock	Hose Coupling	£5.04 £4.20
