Husqvarna Yth20K46 - Engine

Name: Husqvarna Yth20K46 - Engine
SKU: yth20k46_engine-group
Price: 0.53 GBP
Availability: InStock

Description

Husqvarna Yth20K46

Model Year -

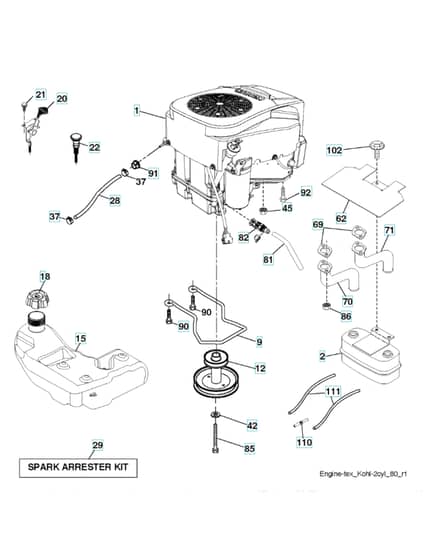

Engine - Parts Diagram

	Part No.	Details
2	HV589 81 87-01	Muffler	Out of stock	£105.36 £87.80
9	HV596 50 15-02	Keeper	Out of stock	£15.68 £13.07
18	HV585 12 48-01	Fuel Cap Assyfits 2.75" Filler Neck	Out of stock	£26.09 £21.74
21	HV532 41 63-58	Screw	Out of stock	£1.67 £1.39
22	HV532 19 15-96	Comma*Rpl.Par 532187767428	Out of stock	£31.74 £26.45
29	HV532 13 71-80	Spark Arrester Kit	Out of stock	£39.62 £33.02
37	HV532 12 34-87	Hose Clamp	Out of stock	£0.64 £0.53
42	HV539 99 02-47	Washer	Out of stock	£3.00 £2.50
62	HV532 43 40-17	Shield	Out of stock	£18.53 £15.44
82	HV532 42 82-87	Plug	Out of stock	£13.55 £11.29
85	HV501 60 65-01	Bolt	Out of stock	£2.17 £1.81
86	HV532 18 43-62	Nut	Out of stock	£2.84 £2.37
90	HV817 00 06-16	Screw	Out of stock	£5.33 £4.44
91	HV532 18 74-95	Bushing	Out of stock	£7.30 £6.08
92	HV817 12 06-16	Screw	Out of stock	£4.42 £3.68
