Husqvarna Yth2048 A - Mower Lift & Deck Lift

Name: Husqvarna Yth2048 A - Mower Lift & Deck Lift
SKU: yth2048_a_2001_02_mower_lift_deck_lift-group
Price: 0.62 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Yth2048 A - Mower Lift & Deck Lift

Description

Husqvarna Yth2048 A

Model Year - 2001-02

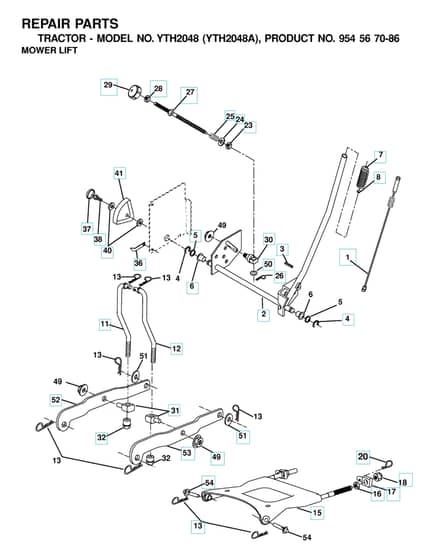

Mower Lift & Deck Lift - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV532 15 94-60 Out of stock	Wire	£24.86 £20.72
2	HV532 15 94-71 Out of stock	Lever	£87.72 £73.10
3	HV532 10 57-67 In stock	Pin Retaining Screw	Was £6.62 £5.52 Special Price £4.88 £4.07
4	HV812 00 00-02 Out of stock	Retainer Ring	£0.74 £0.62
5	HV819 21 16-21 Out of stock	Washer	£2.23 £1.86
6	HV532 12 01-83 Out of stock	Bearing	£5.96 £4.97
7	HV532 12 56-31 Out of stock	Handle	£12.43 £10.36
12	HV532 17 53-71 In stock	Link	Was £11.03 £9.19 Special Price £7.61 £6.34
15	HV532 17 55-62 Out of stock	Bracket	£79.08 £65.90
16	HV596 43 34-01 Out of stock	Nut	£3.43 £2.86
24	HV819 13 10-16 Out of stock	Washer	£2.23 £1.86
26	HV532 16 94-84 Out of stock	Pin	£4.00 £3.33
27	HV532 12 69-71 Out of stock	Lever	£10.57 £8.81
29	HV532 13 80-57 Out of stock	Knob	£16.80 £14.00
30	HV532 15 02-33 Out of stock	Trunnion	£11.32 £9.43
31	HV532 17 62-05 Out of stock	Trunion	£8.71 £7.26
36	HV532 15 50-97 Out of stock	Indicator	£4.86 £4.05
38	HV817 06 05-16 Out of stock	Screw	£4.86 £4.05
50	HV532 11 04-52 Out of stock	Nut	£2.16 £1.80
53	HV532 17 58-02 Out of stock	Lever	£27.35 £22.79
54	HV532 17 55-60 Out of stock	Pin Retaining Screw	£13.06 £10.88
