Husqvarna Yth1842 Xp - Mower Deck & Cutting Deck

Husqvarna Yth1842 Xp - Mower Deck & Cutting Deck
Husqvarna Yth1842 Xp - Mower Deck & Cutting Deck

Description

Husqvarna Yth1842 Xp

Model Year - 2005-05

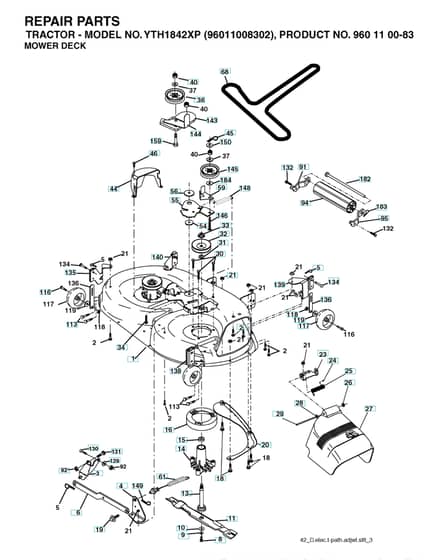

Mower Deck & Cutting Deck - Parts Diagram

Ref. Img. Part No. Details
  -1 Mandrel
Mandrel
HV532 13 07-94 Out of stock
Mandrel
£135.53 £112.94

  2 Bolt
Bolt
HV872 14 05-06 Out of stock
Bolt
£4.20 £3.50

  3 Bracke
Bracke
HV532 13 80-17 Out of stock
Bracke
£16.12 £13.43

  6 Lever
Lever
HV532 17 80-24 Out of stock
Lever
£19.08 £15.90

  8 Bolt
Bolt
HV532 85 08-57 Out of stock
Bolt
£6.12 £5.10

  10 Washer
Washer
HV532 14 02-96 Out of stock
Washer
£7.86 £6.55

  11 Blade
Blade
HV532 13 89-71 Out of stock
Blade
£27.13 £22.61

  14 Bearing Housing
Bearing Housing
HV532 12 87-74 Out of stock
Bearing Housing
£62.72 £52.27

  15 Bearing
Bearing
HV532 11 04-85 Out of stock
Bearing
£7.69 £6.41

  16 Stripper. Mandrel.Black
Stripper. Mandrel.Black
HV531 16 77-01 In stock
Stripper. Mandrel.Black
£12.86 £10.72

  18 Bolt
Bolt
HV596 13 64-01 Out of stock
Bolt
£3.16 £2.63

  19 Spec. Bolt
Spec. Bolt
HV532 13 28-27 Out of stock
Spec. Bolt
£5.46 £4.55

  20 Rail
Rail
HV532 15 97-70 Out of stock
Rail
£22.40 £18.67

  23 Bracket
Bracket
HV532 17 75-63 Out of stock
Bracket
£9.36 £7.80

  24 Hub Cap
Hub Cap
HV532 10 53-04 Out of stock
Hub Cap
£2.87 £2.39

  25 Spring
Spring
HV532 12 37-13 Out of stock
Spring
£9.56 £7.97

  26 Nut
Nut
HV532 11 04-52 Out of stock
Nut
£1.64 £1.37

  29 Shaft
Shaft
HV532 13 14-91 In stock
Shaft
£13.98 £11.65

  31 Washer
Washer
HV532 18 76-90 In stock
Washer
£2.96 £2.47

  32 Pulley
Pulley
HV532 17 34-36 Out of stock
Pulley
£34.13 £28.44

  36 Pulley
Pulley
HV597 02 50-01 Out of stock
Pulley
£47.03 £39.19

  44 Guard
Guard
HV532 14 00-88 Out of stock
Guard
£35.76 £29.80

  46 Screw
Screw
HV532 13 77-29 Out of stock
Screw
£2.40 £2.00

  54 Washer
Washer
HV532 17 85-15 In stock
Washer
£7.02 £5.85

  55 Lever
Lever
HV531 16 66-01-1 Out of stock
Lever
£18.60 £15.50

  61 Spring
Spring
HV532 17 48-82 Out of stock
Spring
£15.17 £12.64

  68 Belt
Belt
HV532 17 48-83 Out of stock
Belt
£97.20 £81.00

  94 Roller
Roller
HV532 13 22-64 Out of stock
Roller
£14.69 £12.24

  95 Bracket
Bracket
HV532 18 05-33 Out of stock
Bracket
£8.29 £6.91

  117 Wheel
Wheel
HV532 17 48-73 In stock
Wheel
£16.66 £13.88

  130 Bolt
Bolt
HV874 78 06-16 Out of stock
Bolt
£5.18 £4.32

  132 Screw
Screw
HV817 00 06-12 Out of stock
Screw
£4.74 £3.95

  144 Belt Guide
Belt Guide
HV532 17 34-41 Out of stock
Belt Guide
£9.60 £8.00

  145 Pulley
Pulley
HV532 17 34-37 Out of stock
Pulley
£54.24 £45.20

  148 Spring
Spring
HV532 16 90-22 Out of stock
Spring
£4.15 £3.46

  149 Spring
Spring
HV532 16 58-98 Out of stock
Spring
£3.14 £2.62

  159 Bolt
Bolt
HV596 98 75-01 Out of stock
Bolt
£6.62 £5.52

  182 Pin Retaining Screw
Pin Retaining Screw
HV532 17 91-26 Out of stock
Pin Retaining Screw
£20.03 £16.69


Description

Husqvarna Yth1842 Xp

Model Year - 2005-05

Mower Deck & Cutting Deck - Parts Diagram
