Husqvarna Yta24V48 - Engine

Name: Husqvarna Yta24V48 - Engine
SKU: yta24v48_engine-group
Price: 0.53 GBP
Availability: InStock

Description

Husqvarna Yta24V48

Model Year -

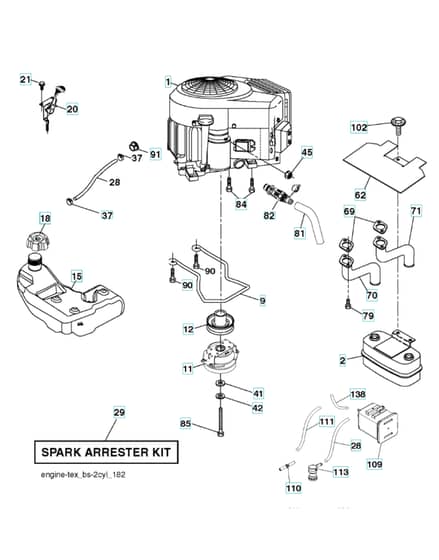

Engine - Parts Diagram

	Part No.	Details
2	HV589 81 87-01 Out of stock	Muffler	£105.36 £87.80
9	HV582 54 03-02 Out of stock	Keeper	£10.34 £8.62
11	HV587 24 16-01 Out of stock	Clutch	£389.40 £324.50
18	HV585 12 48-01 Out of stock	Fuel Cap Assyfits 2.75" Filler Neck	£26.09 £21.74
20	HV587 24 25-01 Out of stock	Throttle	£54.83 £45.69
21	HV532 41 63-58 Out of stock	Screw	£1.67 £1.39
29	HV532 13 71-80 Out of stock	Spark Arrester Kit	£39.62 £33.02
37	HV532 12 34-87 Out of stock	Hose Clamp	£0.64 £0.53
41	HV532 12 61-97 Out of stock	Washer	£12.17 £10.14
42	HV539 99 02-47 Out of stock	Washer	£3.00 £2.50
62	HV532 43 40-17 Out of stock	Shield	£18.53 £15.44
69	HV532 16 53-91 Out of stock	Gasket	£5.84 £4.87
70	HV581 88 11-01 Out of stock	Tubelh	£31.66 £26.38
79	HV532 18 39-06 Out of stock	Screw	£3.73 £3.11
82	HV532 42 82-87 Out of stock	Plug	£13.55 £11.29
84	HV817 06 06-20 Out of stock	Screw	£5.50 £4.58
85	HV501 60 66-01 Out of stock	Bolt	£2.17 £1.81
90	HV817 00 06-16 Out of stock	Screw	£5.33 £4.44
91	HV532 18 74-95 Out of stock	Bushing	£7.30 £6.08
