Husqvarna Yta19K42 - Chassis & Enclosures

Description

Husqvarna Yta19K42

Model Year -

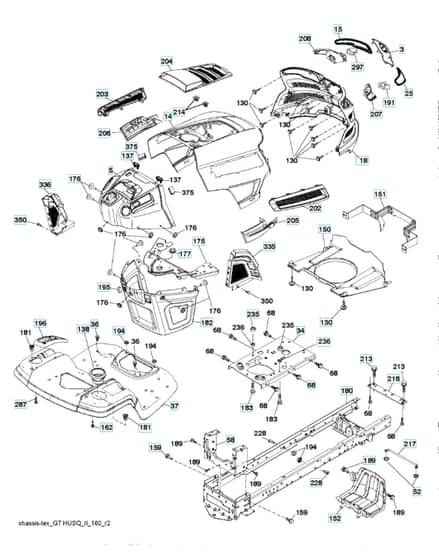

Chassis & Enclosures - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HV532 44 44-81 Out of stock	Logotype	£13.16 £10.97
25	HV532 44 33-85 Out of stock	Lens	£18.61 £15.51
34	HV580 91 08-01 Out of stock	Chassis	£96.84 £80.70
37	HV532 44 12-06 Out of stock	Fender	£241.56 £201.30
130	HV532 41 63-58 Out of stock	Screw	£1.67 £1.39
137	HV532 40 75-90 Out of stock	Damping Piece	£4.93 £4.11
138	HV532 43 97-47 Out of stock	Holder	£4.15 £3.46
150	HV532 43 97-31 Out of stock	Air Duct	£59.78 £49.82
151	HV532 43 66-70 Out of stock	Bracket	£59.22 £49.35
152	HV532 43 98-70 Out of stock	Shield	£54.82 £45.68
159	HV817 00 06-12 Out of stock	Screw	£4.87 £4.06
162	HV532 14 24-32 Out of stock	Screw	£1.90 £1.58
175	HV590 60 77-02 Out of stock	Cross Member	£55.68 £46.40
176	HV532 40 07-76 Out of stock	Screw	£1.67 £1.39
177	HV532 19 52-28 Out of stock	Bushing	£10.33 £8.61
180	HV532 41 50-63 Out of stock	Frame	£273.72 £228.10
182	HV532 40 68-59 Out of stock	Dash	£131.04 £109.20
183	HV874 52 05-20 Out of stock	Bolt	£4.58 £3.82
194	HV873 90 05-00 Out of stock	Nut	£2.26 £1.88
196	HV532 43 96-47 Out of stock	Console	£19.57 £16.31
202	HV532 43 97-28 Out of stock	Cover	£24.26 £20.22
203	HV532 43 97-27 Out of stock	Cover	£24.53 £20.44
205	HV532 43 97-30 Out of stock	Skirt	£22.46 £18.72
206	HV532 43 97-29 Out of stock	Skirt	£27.31 £22.76
207	HV587 46 48-01 Out of stock	Headlight	£20.11 £16.76
208	HV587 46 45-01 Out of stock	Headlight	£20.11 £16.76
213	HV539 97 69-34 Out of stock	Screw	£3.52 £2.93
214	HV532 19 91-45 Out of stock	Clip	£0.76 £0.63
228	HV532 19 51-61 Out of stock	Stud	£2.44 £2.03
235	HV532 40 61-29 Out of stock	Spacer	£9.43 £7.86
236	HV873 93 05-00 Out of stock	Nut	£1.87 £1.56
336	HV532 44 53-09 Out of stock	Cover	£33.46 £27.88
350	HV532 44 51-43 Out of stock	Clip	£0.85 £0.71
375	HV586 90 82-01 Out of stock	Bumper	£4.93 £4.11
