Husqvarna Yt180 - Mower Deck & Cutting Deck

Description

Husqvarna Yt180

Model Year - 1997-01

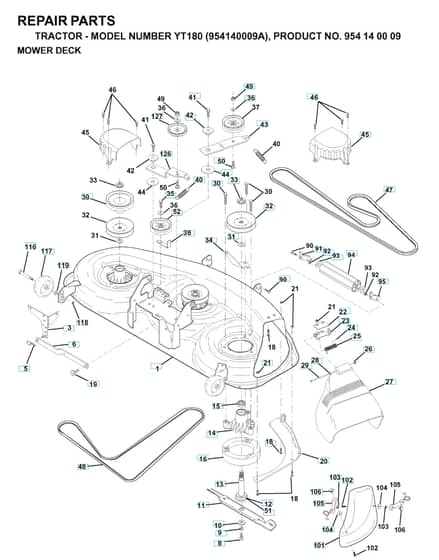

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV532 14 36-51 Out of stock	Mandrel	£100.80 £84.00
8	HV532 85 08-57 Out of stock	Bolt	£5.45 £4.54
10	HV532 14 02-96 Out of stock	Washer	£6.76 £5.63
12	HV532 12 98-95 Out of stock	Bearing	£7.58 £6.32
13	HV532 13 75-53 Out of stock	Shaft	£41.21 £34.34
14	HV532 13 71-52 Out of stock	Bearing Housing	£55.07 £45.89
15	HV532 11 04-85 Out of stock	Bearing	£7.69 £6.41
18	HV596 13 64-01 In stock	Bolt	£3.26 £2.72
19	HV532 13 28-27 Out of stock	Spec. Bolt	£5.60 £4.67
24	HV532 10 53-04 Out of stock	Hub Cap	£2.93 £2.44
25	HV532 12 37-13 Out of stock	Spring	£9.79 £8.16
26	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
29	HV532 13 14-91 Out of stock	Shaft	£13.98 £11.65
35	HV817 49 06-28 Out of stock	Screw	£6.14 £5.12
39	HV532 14 49-17 Out of stock	Pulley	£23.77 £19.81
40	HV532 13 72-73 Out of stock	Spring	£8.71 £7.26
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
47	HV532 14 49-59 Out of stock	Belt	£60.05 £50.04
48	HV532 14 87-63 Out of stock	Belt	£70.32 £58.60
49	HV596 32 26-01 Out of stock	Nut	£3.24 £2.70
51	HV532 15 33-90 Out of stock	Gasket	£3.86 £3.22
90	HV874 76 06-16 Out of stock	Bolt	£2.12 £1.77
94	HV532 13 22-64 Out of stock	Roller	£15.06 £12.55
103	HV810 07 10-00 Out of stock	Washer	£2.17 £1.81
104	HV819 06 12-16 Out of stock	Washer	£2.41 £2.01
117	HV532 13 39-57 Out of stock	Wheel	£21.40 £17.83
