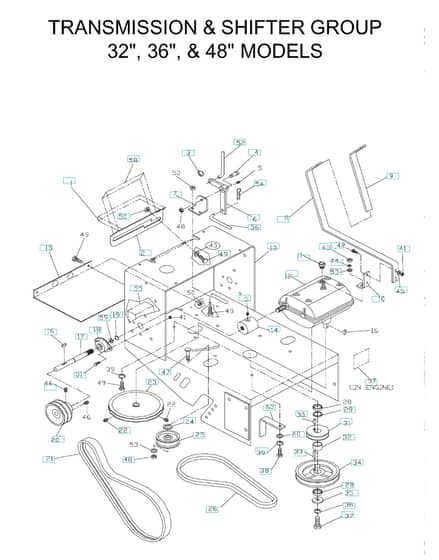

Husqvarna W3612A - 2001-9 - Transmission

Husqvarna W3612A - 2001-9 - Transmission

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna W3612A - 2001-9 - Transmission

Husqvarna W3612A - 2001-9 - Transmission

Description

Husqvarna W3612A

Model Year - 2001-9 - 968999102

Transmission - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	-1		HV539 10 01-41 Out of stock	Screw		£6.96 £5.80
	5		HV539 97 69-98 Out of stock	Nipple		£5.66 £4.72
	24		HV539 99 05-50 Out of stock	Washer		£4.66 £3.88
	25		HV539 91 90-78 In stock	Pulley		£36.36 £30.30
	33		HV539 10 19-95 Out of stock	Key		£4.42 £3.68
	35		HV539 10 65-04 Out of stock	Washer		£6.10 £5.08
	36		HV539 99 02-47 Out of stock	Washer		£2.93 £2.44
	39		HV539 99 01-87 Out of stock	Washer		£2.46 £2.05
	43		HV539 99 01-55 Out of stock	Nut		£2.54 £2.12
	44		HV539 99 01-18 Out of stock	Washer		£2.46 £2.05
	46		HV539 97 69-56 Out of stock	Screw		£1.36 £1.13
	48		HV539 99 05-46 Out of stock	Nut		£2.78 £2.32
	49		HV539 97 69-34 Out of stock	Screw		£3.43 £2.86
	50		HV539 99 01-84 Out of stock	Nut		£2.30 £1.92
	53		HV539 99 05-17 Out of stock	Washer		£3.67 £3.06
	59		HV539 99 10-43 Out of stock	Bushing		£0.92 £0.77

Description

Husqvarna W3612A

Model Year - 2001-9 - 968999102

Transmission - Parts Diagram
