Husqvarna Ts 346 - Mower Deck & Cutting Deck

Description

Husqvarna Ts 346

Model Year -

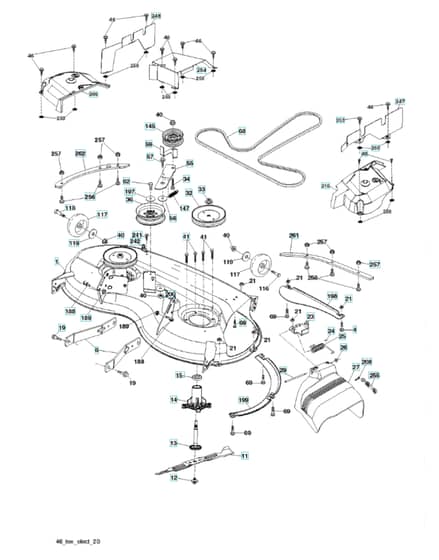

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
6	HV529 84 64-01 In stock	Arm	Was £31.64 £26.37 Special Price £21.52 £17.93
11	HV532 40 53-80 Out of stock	Ride On Blade	£29.16 £24.30
12	HV584 30 93-01 Out of stock	Screw	£6.78 £5.65
19	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
23	HV532 19 25-57 Out of stock	Hinge	£10.96 £9.13
24	HV532 10 53-04 Out of stock	Hub Cap	£2.87 £2.39
25	HV532 19 70-26 Out of stock	Torsion Spring	£10.68 £8.90
26	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
29	HV532 13 14-91 In stock	Shaft	£13.98 £11.65
41	HV584 95 39-01 Out of stock	Bolt	£4.74 £3.95
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
55	HV531 16 94-01 In stock	Arm	£15.12 £12.60
56	HV532 19 90-92 Out of stock	Spacer	£6.66 £5.55
57	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
69	HV596 13 64-01 Out of stock	Bolt	£3.16 £2.63
117	HV589 52 73-01 Out of stock	Wheel	£16.66 £13.88
147	HV532 19 72-51 Out of stock	Spring	£15.26 £12.72
188	HV532 19 51-61 Out of stock	Stud	£2.38 £1.98
189	HV873 90 05-00 Out of stock	Nut	£2.20 £1.83
198	HV532 40 31-49 Out of stock	Plate	£25.16 £20.97
199	HV532 40 31-50 Out of stock	Plate	£27.20 £22.67
200	HV532 41 35-24 Out of stock	Washer	£7.02 £5.85
208	HV817 67 06-08 Out of stock	Screw	£4.30 £3.58
209	HV588 80 88-01 Out of stock	Cover	£21.19 £17.66
241	HV532 15 29-27 Out of stock	Screw	£2.08 £1.73
242	HV532 41 55-98 Out of stock	Hose Coupling	£5.04 £4.20
247	HV532 43 02-63 Out of stock	Shield	£19.73 £16.44
248	HV532 43 02-62 Out of stock	Shield	£17.18 £14.32
254	HV532 43 02-64 Out of stock	Shield	£68.51 £57.09
256	HV539 10 98-00 Out of stock	Bolt	£2.96 £2.47
261	HV589 48 18-05 Out of stock	Plate	£30.76 £25.63
262	HV589 48 20-05 Out of stock	Plate	£30.76 £25.63
