Husqvarna Ts 242 - Engine

Name: Husqvarna Ts 242 - Engine
SKU: ts_242_engine-group
Price: 0.50 GBP
Availability: InStock

Description

Husqvarna Ts 242

Model Year -

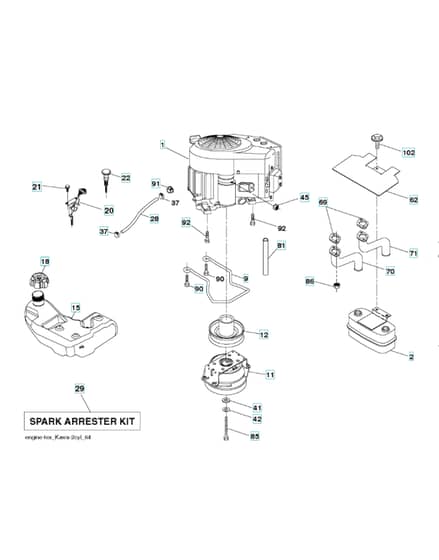

Engine - Parts Diagram

	Part No.	Details
2	HV589 81 87-01 Out of stock	Muffler	£110.62 £92.18
9	HV596 50 15-02 Out of stock	Keeper	£15.29 £12.74
11	HV587 24 15-01 Out of stock	Clutch	£458.14 £381.78
12	HV532 40 50-97 Out of stock	Pulley	£37.74 £31.45
18	HV585 12 48-01 Out of stock	Fuel Cap Assyfits 2.75" Filler Neck	£25.43 £21.19
20	HV532 41 21-65 Out of stock	Cable	£44.59 £37.16
28	HV587 04 48-60 Out of stock	Hose	£19.02 £15.85
29	HV532 13 71-80 Out of stock	Spark Arrester Kit	£38.62 £32.18
37	HV532 12 34-87 Out of stock	Hose Clamp	£0.60 £0.50
41	HV532 12 61-97 Out of stock	Washer	£11.86 £9.88
62	HV532 43 40-17 Out of stock	Shield	£18.07 £15.06
70	HV583 95 56-01 Out of stock	Tube	£30.37 £25.31
71	HV583 95 57-01 Out of stock	Tube	£29.77 £24.81
85	HV581 33 28-04 Out of stock	Bolt	£14.50 £12.08
86	HV532 18 43-62 Out of stock	Nut	£2.78 £2.32
90	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
91	HV532 18 74-95 Out of stock	Bushing	£7.12 £5.93
92	HV817 12 06-16 Out of stock	Screw	£4.30 £3.58
