Husqvarna Ts 146X - Mower Deck & Cutting Deck

Name: Husqvarna Ts 146X - Mower Deck & Cutting Deck
SKU: ts_146x_mower_deck_cutting_deck-group
Price: 0.99 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Ts 146X - Mower Deck & Cutting Deck

Description

Husqvarna Ts 146X

Model Year -

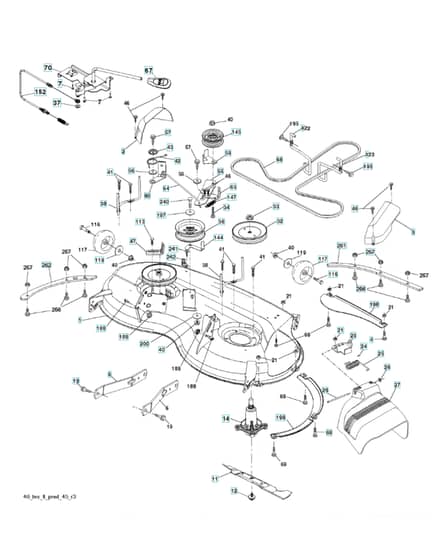

Mower Deck & Cutting Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV532 40 55-07 Out of stock	Cover	£9.30 £7.75
3	HV532 40 55-06 Out of stock	Cover	£9.30 £7.75
6	HV529 84 64-01 In stock	Arm	Was £31.64 £26.37 Special Price £21.52 £17.93
11	HV532 40 53-80 Out of stock	Ride On Blade	£29.16 £24.30
12	HV584 30 93-01 Out of stock	Screw	£6.78 £5.65
14	HV587 81 97-01 Out of stock	Mandrel	£153.76 £128.13
19	HV532 19 65-39 Out of stock	Bolt	£5.94 £4.95
23	HV532 19 25-57 Out of stock	Hinge	£10.96 £9.13
24	HV532 10 53-04 Out of stock	Hub Cap	£2.87 £2.39
25	HV532 19 70-26 Out of stock	Torsion Spring	£10.68 £8.90
26	HV532 11 04-52 Out of stock	Nut	£1.64 £1.37
27	HV532 40 53-57 Out of stock	Deflector	£99.70 £83.08
29	HV595 29 70-01 Out of stock	Rod	£13.98 £11.65
33	HV596 13 48-01 Out of stock	Hexagon Nut	£1.19 £0.99
34	HV596 13 61-01 Out of stock	Bolt	£6.37 £5.31
41	HV584 95 39-01 Out of stock	Bolt	£4.74 £3.95
42	HV532 19 84-10 Out of stock	Spring	£4.15 £3.46
43	HV532 19 72-56 Out of stock	Spring	£4.03 £3.36
46	HV532 13 77-29 Out of stock	Screw	£2.40 £2.00
47	HV532 19 72-50 Out of stock	Bracket	£7.28 £6.07
55	HV531 16 94-01 In stock	Arm	£15.12 £12.60
56	HV532 19 90-92 Out of stock	Spacer	£6.66 £5.55
57	HV817 00 06-16 Out of stock	Screw	£5.18 £4.32
60	HV532 19 94-71 Out of stock	Armlh	£11.03 £9.19
67	HV532 40 30-12 Out of stock	Handle	£10.99 £9.16
113	HV817 00 05-10 Out of stock	Bolt	£2.96 £2.47
116	HV596 43 44-04 Out of stock	Bolt	£4.36 £3.63
117	HV589 52 73-01 Out of stock	Wheel	£16.66 £13.88
122	HV531 16 95-01 Out of stock	Belt Guidelh	£18.25 £15.21
123	HV531 16 97-01 Out of stock	Belt Guiderh	£12.98 £10.82
147	HV532 40 18-72 Out of stock	Spring	£5.29 £4.41
152	HV584 24 35-01 Out of stock	Cable	£57.89 £48.24
188	HV532 19 51-61 Out of stock	Stud	£2.38 £1.98
195	HV817 00 06-12 Out of stock	Screw	£4.74 £3.95
198	HV532 40 31-49 Out of stock	Plate	£25.16 £20.97
199	HV532 40 31-50 Out of stock	Plate	£27.20 £22.67
200	HV532 41 35-24 Out of stock	Washer	£7.02 £5.85
241	HV532 15 29-27 Out of stock	Screw	£2.08 £1.73
242	HV532 41 55-98 Out of stock	Hose Coupling	£5.04 £4.20
261	HV589 48 18-05 Out of stock	Plate	£30.76 £25.63
262	HV589 48 20-05 Out of stock	Plate	£30.76 £25.63
